Product description

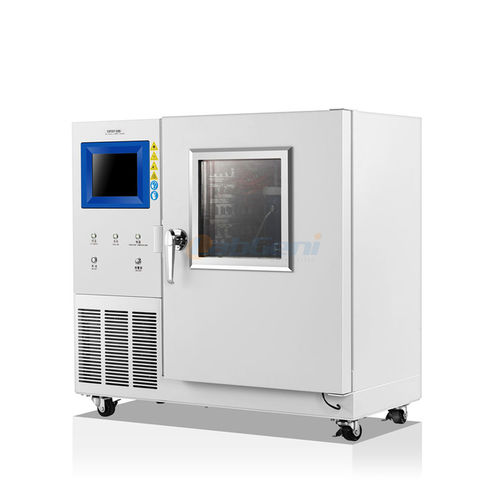

CIT27-10S Self-Accelerating Decomposition Temperature Tester performs adiabatic storage tests to determine the temperature-dependent heat generation rate of substances and to establish the Self-Accelerating Decomposition Temperature (SADT) of a packaged product. The method applies to all container types, including IBCs and tanks, and follows UN Recommendations on the Transport of Dangerous Goods – Manual of Tests and Criteria, Test H.2.

Product features

• Embedded processor with Windows CE operating system
• 8-inch LCD touchscreen for real-time test status display
• Built-in air circulation system ensuring temperature uniformity and cabinet stability
• Digital PID control algorithm for precise heating control
• Integrated cooling system to prevent sample overheating and explosion
• Overtemperature safety cut-off that disables heating at a preset threshold
• Audible and visual fault detection and alarm functions
• Front explosion-proof observation window and rear pressure-relief door; internal thrust > 2.5 kg to ensure reliable relief operation
• Real-time display of runtime and temperature, automatic plotting of test curves and searchable raw data
• Multiple test modes and user-configurable parameters according to sample properties
• Fully automated testing workflow with parameter setting, data storage and report viewing

Product parameters

• Operating environment: 5 °C to 30 °C, <85% RH
• Temperature control range: ambient to 220 °C
• Temperature control accuracy: ±1 °C
• Sample temperature measurement range: 0 to 500 °C
• Sample temperature resolution: 0.1 °C
• Sample temperature accuracy: ≤300 °C: ±2.5 °C; >300 °C: ±(0.75% of reading)
• System heat loss: <10 mW
• Dewar capacity: 1 L

Technical specifications

• Model / SKU: CIT27-10S
• Category: Hazardous Chemical Detection / Thermal stability testing
• Purpose: Determine temperature-dependent heat generation and SADT for packaged substances (UN Test H.2 adiabatic storage)
• Control & display: Embedded processor (Windows CE), 8-inch LCD touchscreen, automatic curve plotting and data search
• Temperature control: Digital PID, ambient to 220 °C, accuracy ±1 °C
• Sample measurement: 0–500 °C range; 0.1 °C resolution; specified accuracies below/above 300 °C
• Thermal characteristic: system heat loss <10 mW
• Safety: cooling system, automatic overheat cut-off, audible/visual alarms, explosion-proof observation window, rear pressure-relief door (internal thrust >2.5 kg)
• Automation & data: Fully automated testing, configurable parameters, data storage and report generation
• Compatibility: Applicable to all container types including IBCs and tanks
• Dewar capacity: 1 L
