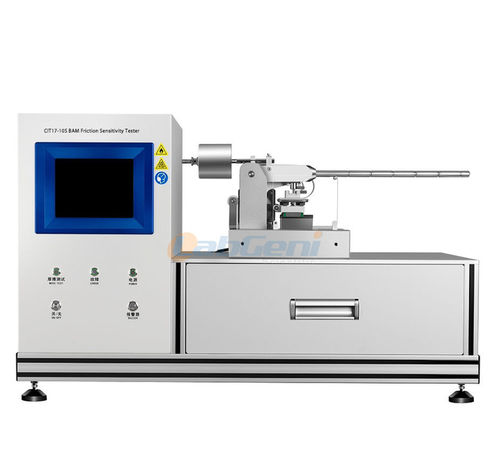

Friction testing tribometer CIT17-10S

Product description
CIT17-10S friction sensitivity tester is used to measure the sensitivity of friction-sensitive materials and to determine if the material is too dangerous to transport in its test form. The instrument complies with the United Nations Recommendations on the Transport of Dangerous Goods — Tests and Criteria Manual 13.5.1 Test 3b(a) (BAM friction instrument). The instrument is equipped with a friction device: a weight on the load arm causes the magnet attached to the porcelain specimen to move back and forth automatically; the operator observes the sample to determine the outcome: explosion, no response, or decomposition.

Product Features

• Embedded processor with Windows CE operating system
• 8-inch LCD touch screen displaying test status in real time
• High-precision motion control unit for precise positioning, speed control and movement accuracy
• Adjustable porcelain movement speed for flexible operation
• High-quality friction and load components with anti-corrosion properties
• Fully automated test sequence with parameter setting, data storage and report viewing

Product Specifications

• Operating environment: 5 ℃ ~ 30 ℃, <85% RH
• Load range: 0 N ~ 360 N
• Load accuracy: 1N ±0.038N; 2N ±0.048N; 5N ±0.08N; 10N ±0.21N; 20N ±0.45N; 40N ±0.49N; 60N ±0.22N; 80N ±0.27N; 120N ±0.32N; 160N ±0.37N; 240N ±0.43N; 360N ±0.48N
• Industrial porcelain surface roughness: 9 μm ~ 32 μm
• Porcelain movement stroke: 10 mm
• Porcelain size (L × W × H): 25 mm × 25 mm × 5 mm
• Ceramic rods size (Φ × L): 10 mm × 15 mm
• Compliance: UN Tests and Criteria Manual 13.5.1 Test 3b(a) (BAM friction instrument)
• SKU: CIT17-10S

Technical characteristics / specifications

• Operating environment: 5 ℃ ~ 30 ℃, <85% RH
• Load range: 0 N ~ 360 N
• Load accuracy (examples): 1N ±0.038N; 10N ±0.21N; 160N ±0.37N; 360N ±0.48N
• Porcelain movement stroke: 10 mm
• Porcelain dimensions: 25 mm × 25 mm × 5 mm
• Ceramic rod dimensions: Φ 10 mm × 15 mm
• Industrial porcelain surface roughness: 9 μm ~ 32 μm
• Standards compliance: UN Tests and Criteria Manual 13.5.1 Test 3b(a) (BAM friction instrument)
• Automation & data: Embedded controller (Windows CE), 8-inch touch display, parameter setting, data storage and report viewing
