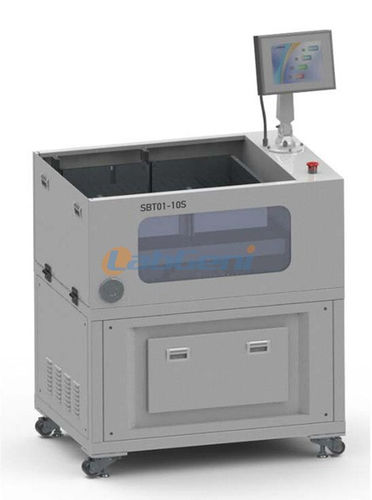

Automatic tilter SBT01-10S

electricmetalindustrial

Product description
The SBT01-10S tilting box is designed to determine the angle of repose of non-cohesive granular materials with particle size below 10 mm. The instrument measures the angle automatically. Structure, function, installation and technical requirements comply with the IMSBC rule. The box and frame are steel, intended for laboratory and quality-control use in material handling and shipping applications.

Key specifications

• Model: SBT01-10S
• Material: Steel
• Chamber inner dimensions (L × W × H): 600 mm × 400 mm × 200 mm
• Grid size (L × W × H): 30 mm × 30 mm × 25 mm
• Chamber incline average speed: 0.3 °/s
• Chamber angle range: 0 °–60 °
• Angle of repose measurement accuracy: <0.5 °
• Protractor measurement accuracy: 1 °
• Suitable particle size for testing: <10 mm
• Power supply: AC220V ±10%, 50Hz ±3Hz
• Rated power: 900 W

Included accessories

• Small shovel for sample loading
• Plastic calibration plate for tilting tank, size: 600 × 600 × 4–6 mm
• Plastic protractor, diameter ≥ 15 cm

Standards & applications
The SBT01-10S meets IMSBC requirements for structure, function and technical specifications. It is suitable for material testing laboratories, port authorities, bulk-handling quality control and incoming inspection of granular non-cohesive cargos.
