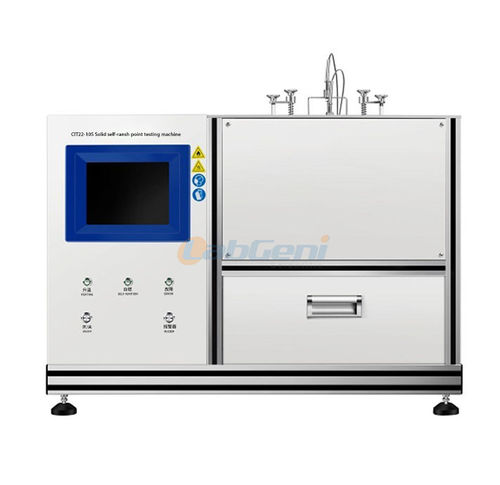

Temperature tester CIT22-10S

laboratorybenchtopwith touchscreen

Product description
The CIT22-10S solid ignition point tester identifies spontaneous combustion characteristics by placing a solid sample in a steel mesh cube (20 mm side) inside a heating chamber with a controlled temperature rise. The instrument complies with GB/T 21756-2008, EC test A16 and NF T20-036 standards.

Product Features

• Embedded processor running Windows CE
• 8-inch touch LCD showing test status in real time
• Supports standard and custom test modes for standards-based and flexible testing
• Integrated high-temperature insulation with precise temperature control and detection
• Electric crucible furnace with natural convection air circulation for uniform sample heating
• Furnace chamber insulated with vacuum ceramic fiber
• Steel mesh cube suspended at the bottom of the chamber for safe, convenient sample placement (20 mm side)
• Automatic heating and temperature control for combustion testing
• Thermocouple sensor for fast, accurate temperature response
• Real-time time–temperature curve display; raw data searchable
• Fully automated test sequence with parameter setting, data storage and report viewing

Product parameters

• Operating environment: 5 °C to 30 °C, <85% RH
• Test object: solid
• Temperature range: ambient to 650 °C
• Temperature control accuracy: ≤350 °C ±1 °C; >350 °C ±2 °C
• Temperature measuring range: 0 to 800 °C
• Temperature resolution: 0.1 °C
• Temperature measurement accuracy: ≤300 °C ±2.5 °C; >300 °C ±(0.75% of reading)
• Heating rate: 0.5 °C/min
• Heating chamber capacity: 2 L
• Timing range: 0–24 h
• Timing accuracy: ±1% of timing range
• Cage size: 20 mm side, aperture 0.045 mm

Technical characteristics

• Model / SKU: CIT22-10S
• Standards compliance: GB/T 21756-2008; EC test A16; NF T20-036
• Sample mounting: steel mesh cube (20 mm side)
• Control & display: embedded processor with Windows CE; 8-inch touch LCD
• Heating: electric crucible furnace with natural convection air circulation
• Insulation: vacuum ceramic fiber insulation
• Sensors: thermocouple temperature sensor
• Automation: automatic heating control, data storage and report viewing; fully automated test process
• Environmental limits: 5 °C to 30 °C, humidity <85% RH
• Chamber capacity: 2 L; Temperature capability up to 650 °C (measuring range to 800 °C)
