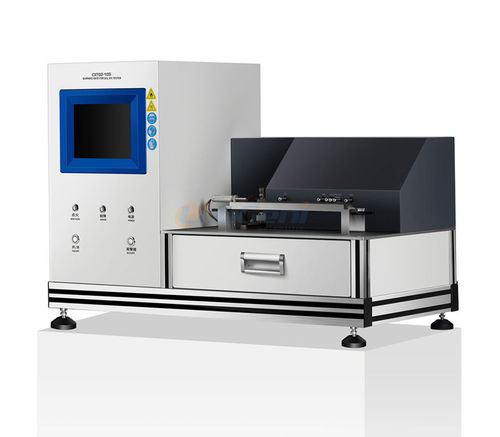

Flammability tester CIT02-10S

temperaturedetectorhardware

Product description:
The CIT02-10S solid burning rate test instrument determines combustion propagation capacity of granular, pasty or powdery materials in accordance with UN Test N.1 (33.2.1.4) and GB/T 21618-2008. The instrument comprises a display/control unit, stacking mold and detection chamber. High-precision real-time infrared sensing records combustion propagation time and automatically evaluates sample flammability.

Product parameters:

• Working environment: 5 ℃ ~ 30 ℃, <85% RH
• Ignition source temperature: ≥1000 ℃
• Ignition: nitrogen-assisted and silicon-nitride rod point ignition
• Detecting combustion stroke: 0 ~ 250 mm
• Combustion distance measurement accuracy: ±0.5 mm
• Timing range: 5 min (non-metal); 20 min (metal)
• Timing accuracy: ±0.1 s
• Stacking mold: L 260 mm × W 20 mm × H 10 mm, triangular cross-section
• Bearing plate: corundum mullite, impervious, non-combustible, low thermal conductivity

Product Features:

• Embedded processor with Windows CE
• 8-inch LCD touchscreen showing test status in real time
• Combined screening and burning-rate test functions in one instrument
• Detects non-metallic powders and metal powder samples
• Standard stacking mold and ergonomic shock-handle design
• Screening uses point ignition without cylinders for increased safety, compliant with standards
• Silicon nitride rod ignition for high stability; ignition temperature detection ≥1000 ℃
• Automatic infrared flame detection for reliable fire and smoldering detection
• Automatic fault detection with audible and visual alarms
• Fully automated test cycle with parameter setting, data storage and report viewing
• Built-in temperature, humidity and atmospheric pressure module for real-time environmental monitoring

Technical specifications:

• Model: CIT02-10S
• Standards: UN Tests and Criteria Manual (Test N.1), GB/T 21618-2008
• Working environment: 5 ℃ to 30 ℃; humidity <85% RH
• Ignition source temperature: ≥1000 ℃ (silicon nitride rod)
• Ignition method: nitrogen-assisted and silicon-nitride rod point ignition
• Combustion stroke range: 0–250 mm
• Distance measurement accuracy: ±0.5 mm
• Timing range: 5 min (non-metal), 20 min (metal)
• Timing accuracy: ±0.1 s
• Stacking mold dimensions: 260 mm × 20 mm × 10 mm, triangular cross-section
• Bearing plate material: corundum mullite, impervious, non-combustible, low thermal conductivity
• Display & control: embedded processor, Windows CE, 8-inch LCD touchscreen
• Detection: infrared flame detection; automatic fault detection with audible and visual alarm
• Data: parameter setting, data storage and report viewing
• Environmental monitoring: built-in temperature, humidity and atmospheric pressure module
