Leakage tester CIT06-10S

safetypressureburst

Product description:

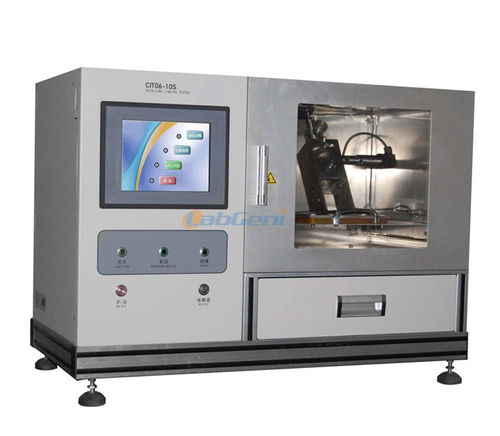

The CIT06-10S Oxidizing Liquid Tester measures the propensity of a liquid to increase the burning rate or intensity of a combustible substance when thoroughly mixed, in accordance with UN Recommendations on the Transport of Dangerous Goods — Tests and Criteria Manual (34.4.2) and GB/T 21620-2008. The instrument places the pressure vessel inside a detection system with an explosion-proof observation window on the front door; during the test it accurately records internal pressure and time and automatically plots the pressure curve.

Product parameters:

• Working environment: 5 ℃ ~ 30 ℃, <85% RH
• Pressure sensor response capability: ≤5 ms for 0–3 MPa pressure changes
• Pressure measuring range: 0–3 MPa
• Pressure measurement accuracy: ±0.25% FS
• Heating: nickel/chromium wire
• Disk burst pressure: 2.5 MPa ±5%
• Standard time range: 0–60 s
• Timing accuracy: ±1 ms

Product Features:

• Embedded processor with Windows CE operating system
• 8-inch LCD touchscreen displaying test status in real time
• Automatic pressure vessel tightness detection (initial pressure drop detection)
• Ignition sound and light alarm
• Stainless-steel seamless welded tank and pressure vessel; corrosion-, high-temperature- and high-pressure-resistant pressure sensor
• Automatic timing and precision pressure monitoring system with real-time detection and display of pressure variations
• Automatic pressure relief device: disc puncture for safe pressure release after test
• Automatic drawing and storage of pressure curves with raw data view
• Reaction residue collection and splash protection to avoid sample contamination outside the vessel
• Remote ignition to ensure operator safety
• Fully automated test workflow with parameter setting, data storage and report viewing

Technical specifications:

• Model: CIT06-10S
• Working environment: 5 ℃ ~ 30 ℃, <85% RH
• Pressure measuring range: 0–3 MPa
• Pressure measurement accuracy: ±0.25% FS
• Pressure sensor response: ≤5 ms for 0–3 MPa changes
• Disk burst pressure: 2.5 MPa ±5%
• Heating method: nickel/chromium wire
• Standard timing range: 0–60 s; timing accuracy ±1 ms
• Interface: 8-inch LCD touchscreen (real-time status)
• Safety features: explosion-proof front window, ignition sound and light alarm, automatic pressure relief, remote ignition, residue collection and splash protection
• Data capabilities: automatic pressure curve drawing, raw data storage and report viewing
