Spark tester CIT09-10

safetyflammabilitysensor

Product overview

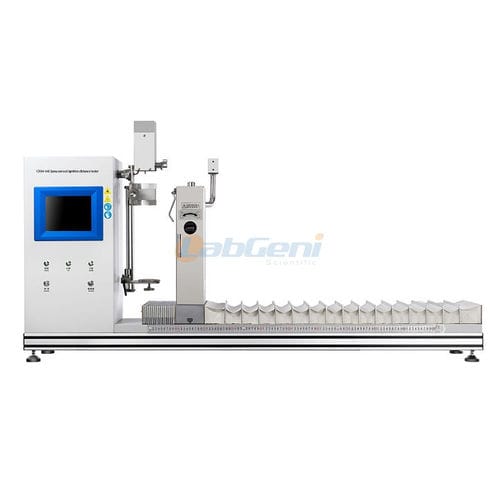

The CIT09-10S aerosol spray ignition distance tester measures the ignition distance of aerosol sprays for cans with spray distances of 15 cm and above. It is designed for laboratories and manufacturers performing compliance, quality control and R&D tests in accordance with United Nations Recommendations on the Transport of Dangerous Goods — Tests and Standards Manual (test 31.4: ignition distance for spray aerosols) and GB/T 21630-2008.

Standards and applications

• Compliance testing for UN and national standards (spray aerosol ignition distance)
• Quality control in aerosol production lines
• Research and development of aerosol formulations and dispensers
• Certification and testing laboratories

Product parameters

• Working environment: 5 ℃ ~ 30 ℃, <85% RH
• Ambient temperature measuring range: -10 ℃ ~ +60 ℃
• Ambient temperature measurement accuracy: ±0.5 ℃
• Humidity measuring range: 5 ~ 95% RH
• Humidity measurement accuracy: ±3.0% RH
• Combustion detection response time: ≤ 6 ms
• Burning detection distance: 15 cm - 90 cm
• Positioning accuracy: ±1 mm
• Press duration: 5 s
• Ignition method: point ignition gun
• Aerosol can positioning: automatic flipping for upright and inverted tests
• Compatible spray can dimensions: height 120 ~ 400 mm, diameter 30 ~ 80 mm

Product features

• Embedded processor running Windows CE
• 8-inch LCD touch display with real-time test status
• Two operation modes: standard and custom
• Automatic spray actuation and clamping for vertical and inverted cans
• Pressure sensors plus nanosecond light-sensor double-detection module for automatic flame/explosion detection
• Thermocouple sensor for real-time ignition state monitoring
• Built-in ventilation and smoke exhaust system to ensure test accuracy and operator safety
• Fully automated workflow with parameter setting, data storage and report generation
• Integrated temperature and humidity monitoring module

Technical specifications

• Working environment: 5 ℃ ~ 30 ℃, <85% RH
• Ambient temperature range: -10 ℃ ~ +60 ℃; accuracy ±0.5 ℃
• Humidity range/accuracy: 5 ~ 95% RH / ±3.0% RH
• Combustion detection response time: ≤6 ms
• Detection distance: 15 cm - 90 cm
• Positioning accuracy: ±1 mm
• Press duration: 5 s
• Ignition: point ignition gun
• Aerosol can handling: automatic flipping for vertical and inverted tests
• Compatible can size: height 120–400 mm, diameter 30–80 mm
• Processor/OS: embedded processor with Windows CE
• Display: 8-inch LCD touch screen
• Detection modules: pressure sensors, high-precision photoelectric sensors, thermocouple, nanosecond double-detection light module
• Ventilation: integrated exhaust/smoke barrel for safe operation
