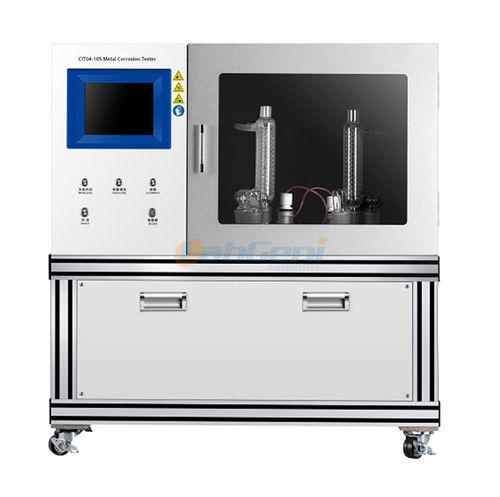

Thermostatic test chamber CIT04-10S

temperaturecorrosionfor materials testing

Product Overview
CIT04-10S metal corrosion tester determines the corrosivity of liquids and solids that may liquefy during transport, in accordance with the United Nations Recommendations on the Transport of Dangerous Goods — Tests and Criteria (Method 37.4) and related hazardous goods inspection requirements.

Design and Operation
The system is composed of three sections: display/control, test assemblies and water supply. It provides automatic sample liquid-level detection, automatic condensate circulation, automatic thermostatic water-bath replenishment and related control functions. The test system includes two test assemblies to perform corrosion tests on two samples simultaneously. Operators monitor and control the full test cycle via the 8-inch LCD touch screen.

Key Features

• Embedded processor running Windows CE
• 8-inch LCD touch screen with real-time test status
• Constant-temperature water bath with automatic temperature control; accuracy ±1 °C
• Spiral condenser connected to reserve water tank for automatic condensate circulation
• U-shaped heat pipe and circulating heating bath for uniform temperature distribution
• Sample liquid-level detection and intelligent water-bath automatic replenishment
• Equipment-failure detection with audible and visual alarms
• Supports unattended continuous testing from 0 to 28 days
• Real-time display of elapsed time and temperature; parameter setting, data storage and report viewing

Product Parameters
MODEL: CIT04-10S
Working environment: 5 °C to 30 °C, <85% RH
Temperature range: room temperature to 80 °C
Temperature accuracy: ±1 °C
Average temperature stability: ±0.5 °C
Timing range: 0–28 days
Sample vessel volume: nominal 3000 mL, effective 2000 mL

Specifications

• Model: CIT04-10S
• Working environment: 5 °C to 30 °C, <85% RH
• Temperature range: room temperature to 80 °C
• Temperature control accuracy: ±1 °C
• Average temperature deviation: ±0.5 °C
• Timing range: 0–28 days (continuous unattended testing)
• Sample vessel: nominal 3000 mL, effective 2000 mL
• Control system: embedded processor, Windows CE
• Display: 8-inch LCD touch screen
• Features: automatic sample level detection, automatic condensate circulation, automatic water bath replenishment, failure detection with alarm, data storage and report viewing
