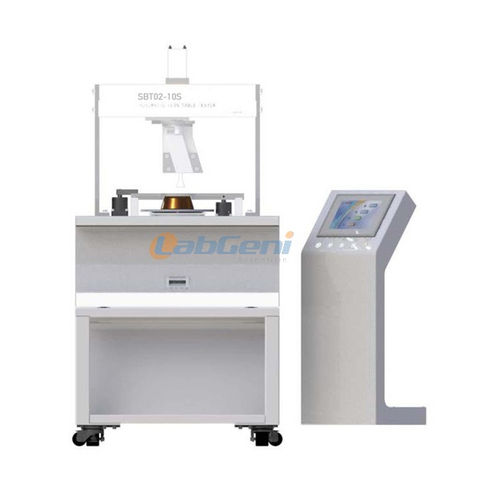

Vibration testing machine SBT02-10S

flowautomaticfor powders

Overview
SBT02-10S automatic flow disk tester is designed to evaluate flow behavior of concentrates and other particulate materials. It supports a maximum particle size of 1 mm for concentrates and provides controlled vibration and tamping for reproducible flow and sample preparation in industrial and laboratory settings.

Product parameters:

• Model: SBT02-10S
• Applicable maximum particle size: 1 mm (for concentrates or similar particulate matter)
• Determination size (measurement limit): ≤7 mm
• Flow plate material: copper
• Flow plate diameter: 254 mm ± 1 mm
• Streaming accuracy (error): ±0.13 mm
• Disc and round mold hardness: copper, hardness ≥ HRB25
• Maximum tamping pressure: 71 kg
• Vibration plate amplitude (height): 12.5 mm
• Vibration frequency: 25 cycles/min
• Flow plate vibration mode: Auto
• Rated power: 600 W
• Power supply: AC 220 V ±10%, 50 Hz ±3 Hz
• Machine dimensions (L × W × H): 705 mm × 405 mm × 1360 mm
• Weight: 200 kg

Accessory equipment:

• Balance and calibration weights
• Glass cylinder(s) and tubes
• Approx. 30 cm diameter hemispherical mixing bowl

Applications and use recommendations:

• Laboratory flow characterization of concentrates and granular materials
• Quality control and comparative testing
• Sample preparation requiring controlled vibration and tamping
• Suitable for industrial laboratories, mineral processing and materials testing facilities
