Safety tester CIT08-10S

performancesparkflammability

Product overview:

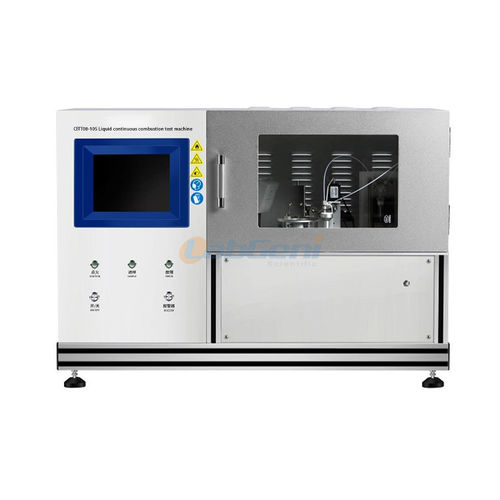

The CIT08-10S liquid sustained combustion tester evaluates whether a liquid continues to burn when exposed to a standard flame under controlled heating. It is intended for non-crystallizing liquids at room temperature and complies with the UN Recommendations on the Transport of Dangerous Goods (sustained combustion test 32.5.2) and G/T21622-2008 test methods. The instrument automates sample dosing, ignition and detection to deliver reproducible results for production, transport and regulatory testing.

Applications:

• Regulatory and compliance testing of flammable liquids
• Quality control in chemical production
• Material identification and safety assessment for transport

Key parameters:

• Working environment: 5 °C to 30 °C, <85% RH
• Test temperature range: room temperature to 85 °C; accuracy ±0.5 °C
• Ambient pressure range: 60–110 kPa; accuracy ±0.5 kPa
• Injection volume: 1–3 mL; precision ±0.05 mL
• Timing range: 0–999 s; timing accuracy ±0.1 s
• Heating timer options: 60 s and 30 s
• Sample bottle capacity: 20 mL

Main features:

• Embedded processor with Windows CE and 8-inch LCD touch interface for real-time status
• Three operation modes: standard, custom and cleaning
• Automatic injector module with maintenance-free self-cleaning
• Ambient pressure and temperature compensation for accurate control
• High-sensitivity photoelectric flame detection for automatic flame recognition
• Automatic ignition (spark plug), auto-positioning and precision timing
• Automatic fault detection with audible and visual alarms
• Fully automated workflows with parameter setting, data storage and report viewing

Technical specifications:

• Model: CIT08-10S
• Operating temperature (environment): 5 °C to 30 °C
• Relative humidity: <85% RH
• Test temperature: room temperature to 85 °C; accuracy ±0.5 °C
• Ambient pressure measurement: 60–110 kPa; accuracy ±0.5 kPa
• Heating timer: selectable 60 s / 30 s
• Injector: automatic injector module; injection 1–3 mL; precision ±0.05 mL; maintenance-free self-cleaning
• Timing: 0–999 s; accuracy ±0.1 s
• Ignition source: spark plug (automatic ignition)
• Sample bottle: 20 mL
• Interface: 8-inch LCD touch screen; embedded processor running Windows CE
• Detection: photoelectric flame detection; ambient pressure and temperature compensation
• Modes: standard, custom, cleaning
• Safety: automatic fault detection with sound and light alarm
• Data: parameter setting, storage and report viewing supported; fully automated test procedure
