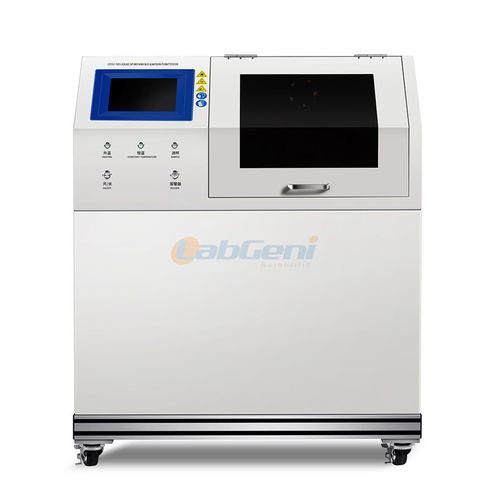

Temperature tester CIT23-10S

flash pointmoisturepressure

Product description
CIT23-10S liquid auto‑ignition point tester measures the auto‑ignition and flame behavior of liquid chemicals in a uniformly heated vessel at atmospheric pressure. The tester is built to perform tests in accordance with ASTM E659‑78 (2005) and related standard methods, for laboratory and QC use in chemical, petrochemical and materials testing environments.

Key features

• Embedded processor with Windows CE operating system
• 8-inch LCD touch display showing test status and data in real time
• Electric heating crucible with forced‑air furnace for improved heating efficiency
• Furnace chamber insulated with vacuum ceramic fiber for uniform temperature distribution
• Thermocouple sensor for fast, accurate temperature response
• Fully automated test sequence with animated procedure display and automatic report generation
• Integrated temperature, humidity and atmospheric pressure monitoring modules

Technical parameters

• Model: CIT23-10S
• Test specimen: Liquid chemicals
• Operating environment: 5 °C ~ 30 °C, <85% RH (installed inside hood)
• Test temperature range: Ambient to 650 °C (measurement range up to ~800 °C)
• Temperature display accuracy: ±1 °C (below 350 °C); ±2 °C (above 350 °C)
• Temperature measurement resolution: 0.1 °C
• Alternate temperature accuracy: ±2.5 °C (below 300 °C); above 300 °C ±0.75% of reading
• Ambient temperature sensor range/accuracy: -10 °C ~ +60 °C / ±0.5 °C
• Humidity range/accuracy: 5 ~ 95% RH / ±3.0% RH
• Atmospheric pressure range/accuracy: 60 ~ 110 kPa / ±0.5 kPa

Operation and software

• Real‑time data display and control via 8-inch touch screen
• Automated test control with preconfigured test routines and animated guidance
• Automatic data logging and report generation for compliance documentation
• Remote monitoring and data export supported per customer configuration
