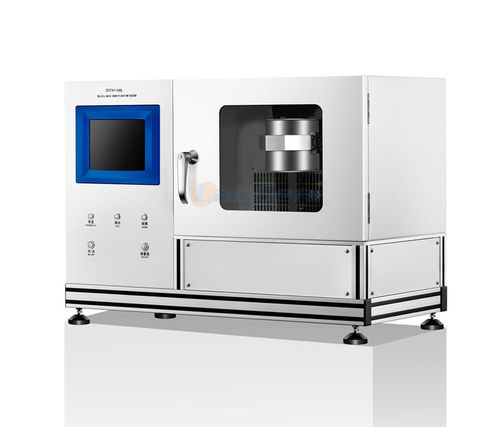

Suspended solids monitor CIT31-10S

Product overview
This tester supervises and determines whether viscous substances behave as solids or liquids. It is designed for paints, coatings and ASTM Class D materials (petroleum products, fuels, low-strength plastics, etc.). The system provides automated, repeatable measurements of flow distance and drip mass under controlled temperature and lighting conditions.

Features

• Embedded processor running Windows CE
• 8-inch LCD capacitive touchscreen with real-time status display
• Full automation: automatic turning, timing, flow-distance detection and drip-mass measurement
• High-precision laser sensors for accurate flow-distance measurement (±1 mm)
• Precision weighing module for dripping-sample mass measurement (accuracy ±0.1 g)
• Integrated heating system to maintain test area at 38±3°C (box control range 35–41°C)
• Long-life LED lighting in the test chamber for direct observation of sample flow
• Automatic audible and visual alarms on fault
• Automatic correction for mass variation due to pallet changes
• Data functions: parameter setting, data storage and report viewing

Technical specifications
MODEL: CIT31-10S
Operating environment: -5–40°C, <95% RH
Flow distance detection range: 0–70 mm
Flow distance detection accuracy: ±1 mm
Box temperature control range: 35–41°C (test area maintained at 38±3°C)
Mass inspection range: 0–500 g
Mass inspection accuracy: ±0.1 g
Timing range: 0–50 h
