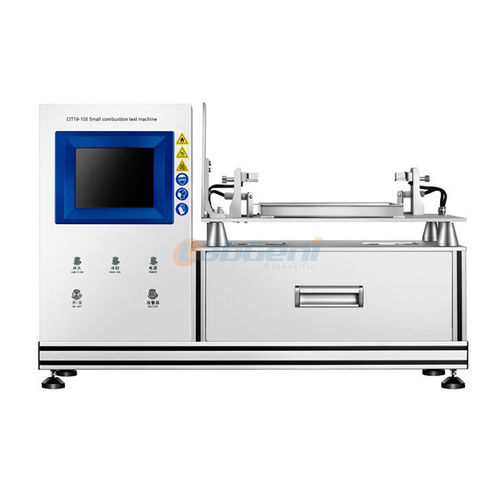

Air temperature combustion analyzer CIT19-10S

Product description
Small burning tester is used to determine a substance's reaction to fire. The instrument complies with the United Nations "Recommendations on the Transport of Dangerous Goods — Manual of Tests and Criteria" 13.7.1 Test 3(d) for small burning tests.

• Instrument consists of a display control and detection system
• Display control system includes power switch, ARM-based operating system, LCD screen, control buttons and related components
• Display can be touch-type or mouse-controlled; LCD records the full test process
• Remote ignition and timing control

Product Features

• Embedded processor with Windows CE operating system
• 8-inch LCD touch screen showing real-time test status
• Equipped with a camera to record the entire test process
• Fully automated test sequence with parameter setting, data storage and report viewing
• Integrated temperature and humidity module for real-time monitoring of test environment

Product Specifications

• Operating environment: 5 ℃ ~ 30 ℃, <85% RH
• Ignition: electronic remote ignition
• Timing accuracy: ± 0.1 s
• Ambient temperature measurement range: -10 ℃ ~ +60 ℃
• Ambient temperature measurement accuracy: ± 0.5 ℃
• Humidity measurement range: 5 ~ 95% RH
• Humidity measurement accuracy: ± 3.0% RH

Technical specifications

• Model: CIT19-10S
• Purpose: small burning test to determine substance reaction to fire according to UN TDG recommendations (13.7.1 Test 3(d))
• Control & detection: display control and detection system with power switch, ARM-based OS and control buttons
• Display: 8-inch LCD; touch-type or mouse-controlled; records full test process
• Operating system: Windows CE (embedded processor)
• Ignition: electronic remote ignition with remote timing control
• Timing accuracy: ±0.1 s
• Environmental monitoring: integrated temperature & humidity module; temperature range -10 ℃ ~ +60 ℃ (accuracy ±0.5 ℃); humidity range 5 ~ 95% RH (accuracy ±3.0% RH)
• Automation & data: fully automated testing process; parameter setting, data storage and report viewing supported
• Imaging: built-in camera to record the entire test process
