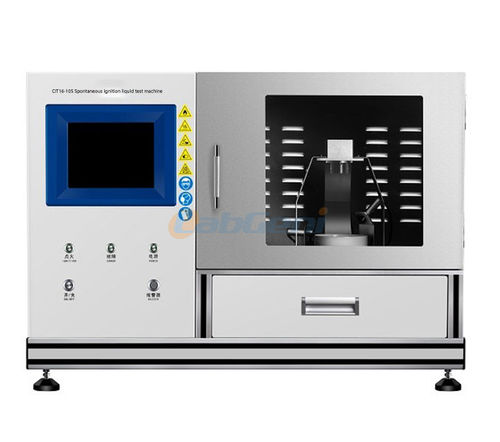

Laboratory tester CIT16-10S

benchtopwith memoryautomatic

Product Description
The CIT16-10S self-pyrophoric liquid classification tester is designed to determine whether a liquid will ignite when introduced into an inert gas and then exposed to air, or whether it will cause filter paper blackening or combustion upon air contact. The instrument is intended for laboratory and quality-control use and follows the United Nations Recommendations on the Transport of Dangerous Goods (Test N3). The system comprises a test stand and a control box, with automated detection of ignition and timing. An RS232 interface enables export of test data to a PC or external storage, supporting unattended, automated test sequences.

Product Features

• Embedded processor running Windows CE for local control and stability
• 8-inch LCD touch screen showing real-time test status and results
• Automatic filter-paper carbon black detection for visual-change assessment
• Nanosecond-response light sensor module to detect rapid light-intensity changes
• Automatic alerts on detection of ignition or when predefined unburned-material time elapses
• Fully automated test workflow with parameter configuration, data logging and report viewing
• Integrated temperature and humidity module for real-time environmental monitoring and automatic condition alerts

Product Specifications

• Operating environment: 5 °C to 30 °C, <85% RH
• Timing range: 0 to 300 s
• Timing accuracy: ±1 s
• Ambient temperature measurement range: -10 °C to +60 °C
• Ambient temperature measurement accuracy: ±0.5 °C
• Humidity measurement range: 5 to 95% RH
• Humidity measurement accuracy: ±3.0% RH

Technical Characteristics

• Model: CIT16-10S
• Primary function: Classification of pyrophoric behavior of liquids (UN Test N3)
• Display: 8-inch LCD touch screen
• Processor / OS: Embedded processor with Windows CE
• Detection modules: Filter-paper carbon black automatic detection; nanosecond light sensor for light-intensity change detection
• Interface: RS232 for data export to PC or external storage
• Automation: Fully automated testing process with parameter setting, data storage and report viewing
• Environmental monitoring: Built-in temperature & humidity module with automatic alerts
• Timing: 0–300 s, accuracy ±1 s
• Operating environment: 5 °C to 30 °C, <85% RH
• Ambient measurement range/accuracy: -10 °C to +60 °C / ±0.5 °C
• Humidity measurement range/accuracy: 5 to 95% RH / ±3.0% RH
