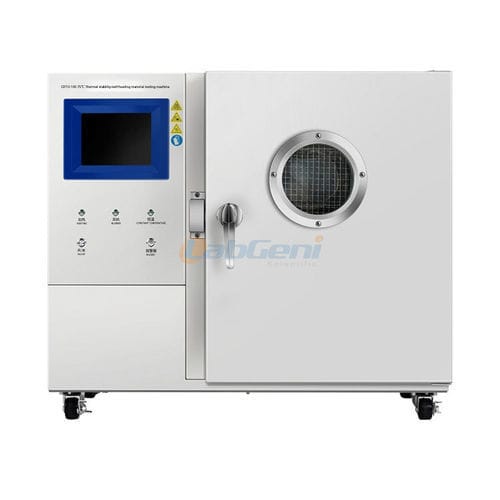

Thermostatic test chamber CIT13-10S

humiditytemperaturetemperature stability

Product description
The CIT13-10S is a thermal stability tester designed to assess the stability of substances under elevated temperature conditions in accordance with UN Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria, section 13.6.1 (Test 3(c)) at 75°C. It is suitable for evaluating explosive substances, desensitized explosives, self-reactive substances and organic peroxides to determine transport safety.

Product features

• Embedded processor with Windows CE operating system for reliable control
• 8-inch LCD touchscreen showing real-time test status and controls
• Digital PID temperature control with accuracy up to ±1°C
• Built-in hot air circulation heating system to ensure temperature uniformity
• Three-point temperature measurement system for accurate and reliable data
• Special tube cap relief device to safely release internal pressure
• Explosion-proof observation window and back-pressure relief door for operator safety
• Supports up to 48 hours unattended testing; custom time up to 72 hours
• Real-time temperature–time curve display with searchable raw data
• Fully automated test sequence with parameter setting, data storage and report viewing

Product parameters

• Operating environment: 5 °C to 30 °C, <85% RH
• Temperature range: from room temperature to 200 °C
• Temperature accuracy: ±1 °C
• Average temperature accuracy in experimental area: ±1.5 °C up to 140 °C; ±2 °C for 140–180 °C; ±2.5 °C for 180–200 °C
• Temperature measuring range: 0–500 °C
• Temperature resolution: 0.1 °C
• Relief pressure for flat-bottomed glass tubes: ≤ 60 kPa
• Stopwatch range: 0 to 48 hours
• Custom time range: 0 to 72 hours

Technical specifications

• Model: CIT13-10S
• SKU: CIT13-10S
• Display: 8-inch LCD touchscreen
• Control system: Embedded processor, Windows CE
• Temperature control: Digital PID algorithm, accuracy ±1 °C
• Temperature measurement: Three-point system; range 0–500 °C; resolution 0.1 °C
• Experimental area average temperature accuracy: ±1.5 °C (≤140 °C); ±2 °C (140–180 °C); ±2.5 °C (180–200 °C)
• Heating: Internal hot air circulation system for uniform heating
• Safety features: Tube cap relief device; explosion-proof observation window; back-pressure relief door
• Unattended operation: Up to 48 hours continuous; custom up to 72 hours
• Data handling: Real-time temperature–time curve, raw data searchable, data storage and report viewing
• Operating environment: 5 °C – 30 °C, <85% RH
• Flat-bottomed glass tube relief pressure: ≤ 60 kPa
