Product description

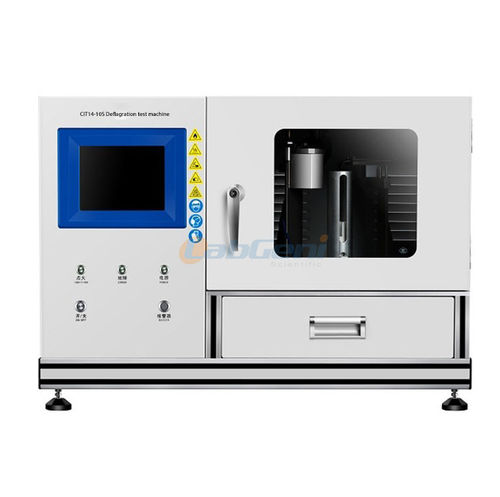

The CIT14-10S is a laboratory deflagration test instrument designed to measure deflagration propagation of materials. It is intended for testing self-reactive substances and organic peroxides and provides automated, instrumented measurements to support safety assessment and regulatory compliance.

Standards
Complies with United Nations Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria: section 23.4.2 Test C.2 (deflagration tests).

Operation principle
The instrument continuously monitors the sample container using thermocouple sensors and optical sensors to detect temperature and light changes. Data are processed in real time to calculate deflagration propagation distance and velocity.

Product Features

• Embedded processor running Windows CE
• 8-inch LCD touch display for real-time status and control
• Thermocouple detection module for precise temperature measurement and velocity calculation
• Pressure- and high-temperature-resistant reaction chamber with fitted glass door to contain hazards
• Remote ignition system with remote control capability
• Automatic timing and test sequencing
• Fully automated testing workflow with parameter setting, data storage and report viewing

Product parameters

• Operating environment: 5 ℃ – 30 ℃, <85% RH
• Temperature measuring range: 0 – 1000 ℃
• Deflagration distance: 50 mm
• Deflagration velocity measurement range: ≤10 mm/s
• Deflagration velocity accuracy: ±0.1 mm/s
• Timing accuracy: ±0.1 s
• Dewar vessel: volume 300 cm³; inner Ø 48 mm; outer Ø 60 mm; length 200 mm

Technical specifications

• Model: CIT14-10S
• Embedded processor with Windows CE OS
• 8-inch touch LCD for real-time display and control
• Thermocouple detection module for temperature change detection and deflagration velocity calculation
• Reaction chamber: pressure- and high-temperature-resistant, fitted glass door for containment
• Remote ignition system and remote control
• Automatic timing (accuracy ±0.1 s)
• Deflagration distance 50 mm; velocity range ≤10 mm/s; velocity accuracy ±0.1 mm/s
• Temperature measurement 0–1000 ℃
• Dewar vessel: 300 cm³; inner Ø 48 mm; outer Ø 60 mm; length 200 mm
• Operating environment: 5 ℃–30 ℃, <85% RH
