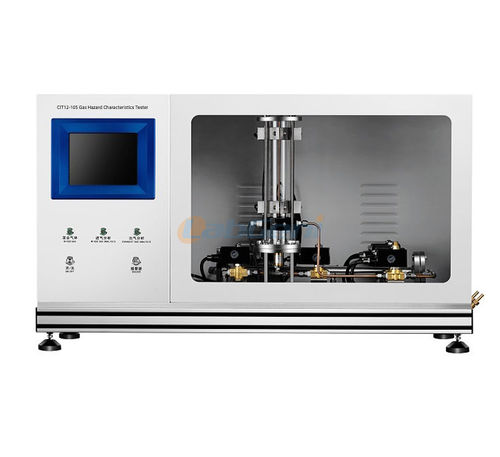

Detection gas monitoring equipment CIT12-10S

for analysisfor process monitoringfor metallurgical applications

Short description
CIT12-10S gas hazardous characteristics tester is designed to evaluate combustion behaviour of clean combustible gases and their mixtures, determine flammable concentration ranges and measure combustion speed for classification and safe handling.

Description
The instrument integrates high-resolution photodetectors and thermocouple sensors to monitor reaction-tube light intensity and temperature in real time. An embedded processor (Windows CE) and an 8-inch touch LCD automate gas mixing, detection and calculation of combustion rate. The system automatically determines combustible-gas concentration and burning rate and stores test data for reporting. Intended for use in chemical, metallurgical, production, transport and storage environments where flammable gas properties must be assessed.

Product Features

• Embedded processor with Windows CE and 8-inch LCD touch screen for real-time control and status display;
• High-resolution photodetector and thermocouple sensors for fast, accurate detection;
• Dual-channel digital flow meter for precise flow control and mixing (5-500 sccm);
• Automatic combustion performance evaluation with adjustable concentration stepping and data logging;
• Reaction chamber with double glass to protect operators;
• Compatible with GC/MS quantitative sampling; includes 1 L gas sampling bags;
• Temperature and humidity monitoring module; fully automated test sequence with report viewing and data storage.

Product Parameters

• Model: CIT12-10S
• Operating environment: 5 °C ~ 30 °C, <85% RH
• Flow control range: 5-500 sccm
• Flow control accuracy: ±1% FS
• Flow measurement response time: ≤1 s
• Combustion detection response time: ≤1 ms
• Safety valve opening pressure: 2 kg/cm²
• Reaction tube: L 300 mm, ID 50 mm, 5 mm thick (double-glass reaction chamber)
• Combustion speed detection range: ≤500 cm/s
• Combustion speed detection accuracy: ±5 mm/s
• Gas passage inlet pressure: ≤5 MPa
• Gas sampling bags: 1 L
• Interface: 8-inch LCD touch screen, Windows CE embedded processor
• Sensors: high-resolution photodetector and thermocouple for real-time monitoring
• Additional: dual-channel digital flow meter; temperature and humidity module; automated test process with data storage and report viewing
