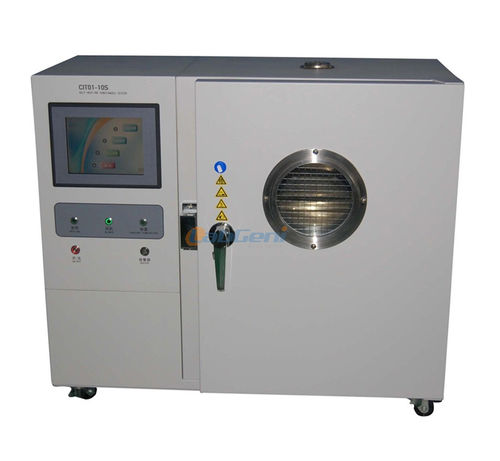

Container hot chamber CIT01-10S

Product overview:
The CIT01-10S is a desktop tester for assessing self-heating behavior of substances in air according to UN Recommendations (Tests and Criteria) section 33.3.1.6 — Test N.4. The unit integrates a removable-layer hot-air heating chamber, mesh sample cages (25 mm and 100 mm), continuous internal temperature recording and automated result determination.

Standards and application:

• Compliant with UN “Recommendations on the Transport of Dangerous Goods — Tests and Criteria”, section 33.3.1.6 (Test N.4)
• Designed for laboratories, safety testing centers and industrial QA for classification of self-heating/oxidizing materials

Main parameters:

• Operating environment: 5 °C to 30 °C, <85% RH
• Operating temperature range: ambient to 200 °C
• Temperature control accuracy: ±1 °C (PID)
• Temperature measuring range: 0–500 °C; resolution 0.01 °C; measurement accuracy ≤300 °C: ±2.5 °C
• Experimental area average stability: ±1.5 °C (below 140 °C)
• Standard test duration: 0–24 h (configurable up to 48 h)
• Mesh sample containers: small 25 mm (aperture 0.05 mm), housing 30×30×30 mm; large 100 mm (aperture 0.05 mm), cover 105×105×105 mm; cage 150×150×250 mm
• Liner interior dimensions: 350×350×400 mm

Key features:

• Embedded processor with Windows CE and 8" touch LCD for real-time display
• Removable-layer design with hot air circulation for uniform heating
• Digital PID control for precise temperature regulation
• Continuous internal sample temperature monitoring and automatic report generation
• Automated package-type judgment and test result determination per standard
• Automatic fault detection with audible/visual alarms and safety interlocks
• Front explosion-proof observation window and back pressure-relief door (activates at internal thrust > 2.5 kgf)
• Flexible user-configurable test parameters, adjustable sequences and customizable cages
• Full data access: raw data, curve plotting and report export

Technical specifications:

• Model: CIT01-10S
• Control: embedded processor, Windows CE; 8" touch LCD
• Heating: removable-layer hot-air circulation; PID temperature control
• Safety: explosion-proof front glass; back pressure relief door; automatic alarms
• Data: continuous monitoring, automatic report generation, raw data and curve plotting
