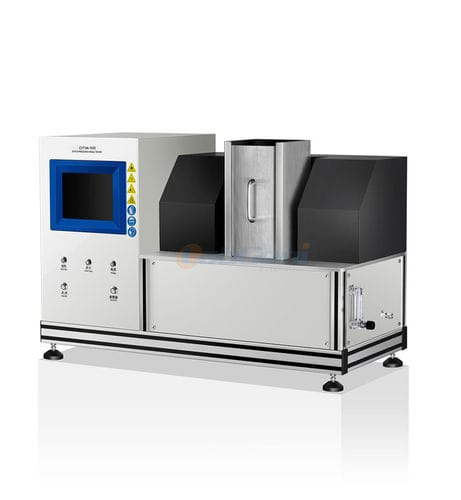

Pressure test unit CIT34-10S

Description
The CIT34-10S is designed to determine the sensitivity of self-reactive substances, organic peroxides and their mixtures to elevated heat under specified closed conditions. It is intended for laboratory, quality control and regulatory testing and complies with the UN Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria 25.4.2 Test E.2 (Dutch Pressure Vessel Test) and the Safety Code for Inspection of Hazardous Characteristics of Organic Peroxide Dangerous Goods.

Features

• Embedded processor with Windows CE operating system for stable control
• 8-inch LCD touchscreen for real-time test status display
• Standard, custom and calibration modes to adapt test procedures
• Remote-control ignition with camera observation to ensure safe operator monitoring
• Flow meter for precise heating-rate control via gas flow adjustment
• Dedicated calibration mode to verify and set heating-rate accuracy
• Self-test and automatic audible/visual alarms for safety
• Video surveillance system to record the test sequence and enable playback review
• Automated test sequence with parameter setting, data storage and report viewing

Table (key — value)
MODEL — CIT34-10S
Working environment — -5 to 45 °C, ≤95% RH
Heating rate — 3.2–3.8 K/s
Pressure vessel internal dimensions — Φ50 mm × 94.5 mm
Pressure vessel material — 316L stainless steel
Explosion-proof disc material — aluminum round plate, Ø 38 mm
Explosion-proof disc burst pressure — 620 ± 60 kPa at 22 °C
Orifice plate apertures — 1.0 mm, 2.0 mm, 3.5 mm, 6.0 mm, 9.0 mm, 12.0 mm, 16.0 mm, 24.0 mm
Orifice plate thickness — 2.0 ± 0.2 mm
Temperature detection resolution — ±0.1 °C
Temperature sensor response time — 0.5 s

Technical specifications

• Model: CIT34-10S
• Intended use: Determine sensitivity of self-reactive substances and organic peroxides to elevated heat under closed conditions
• Standards: UN Manual of Tests and Criteria 25.4.2 Test E.2 (Dutch Pressure Vessel Test); Safety Code for Inspection of Hazardous Characteristics of Organic Peroxide Dangerous Goods
• Operating system: Embedded processor with Windows CE
• Display: 8-inch LCD touchscreen, real-time status
• Test modes: Standard, custom, calibration
• Ignition: Remote-control ignition with camera observation
• Heating control: Flow meter and dedicated calibration mode
• Safety & alarms: Self-test, automatic audible and visual alarms
• Monitoring: Video surveillance with recording and playback
• Automation: Parameter setting, data storage, report viewing
• Working environment: -5 to 45 °C, ≤95% RH
• Heating rate: 3.2–3.8 K/s
• Pressure vessel internal dimensions: Φ50 mm × 94.5 mm
• Pressure vessel material: 316L stainless steel
• Explosion-proof disc: Aluminum round plate, Ø 38 mm; burst pressure 620 ± 60 kPa at 22 °C
• Orifice plate apertures available: 1.0, 2.0, 3.5, 6.0, 9.0, 12.0, 16.0, 24.0 mm
• Orifice plate thickness: 2.0 ± 0.2 mm
• Temperature detection resolution: ±0.1 °C
• Temperature sensor response time: 0.5 s
