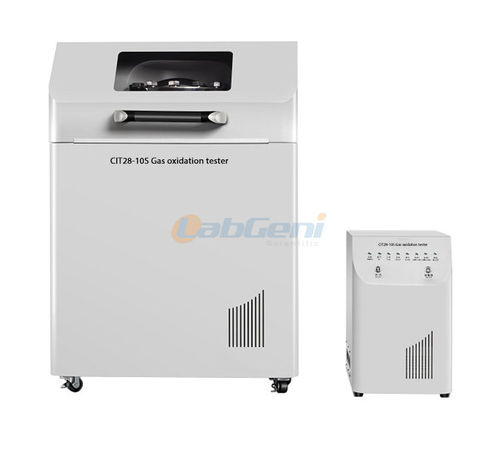

Laboratory gas monitoring equipment CIT28-10S

for analysisfor detection

Product description
Laboratory oxidizing gas tester designed to determine the oxidizing potential of gases and gas mixtures according to ISO 10156-2010. Intended to assess whether a gas or mixture has greater oxidizing ability than air and to support classification (toxicity/corrosivity) and cylinder valve exhaust port selection.

Product Features

• Independent test chamber and control unit design to isolate test area and protect operators;
• PC operating software with parameter setting, data storage and report viewing;
• Remote ignition capability to enhance operator safety;
• High-precision pressure sensor for accurate explosion pressure measurement and control of partial pressure ratios;
• Magnetic stirring device with adjustable stirring speed for mixture homogeneity;
• Microprocessor-controlled ignition timing for repeatable tests;
• Automatic cleaning function to reduce maintenance time;
• Automatic pressure relief option to safely vent test chamber after trials;
• Multiple explosion-proof protections and automatic fault detection with audible/visual alarms;
• Fully automated test sequence with support for parameter presets and digital record keeping.

Product Specifications

• Operating environment: 5 °C ~ 30 °C, <85% RH
• Test tank material: stainless steel 316L
• Test tank maximum pressure: ≥5000 kPa
• Test tank capacity: ≥0.005 m³
• Test tank accessories: magnetic stirrer, stirring speed adjustable
• Ignition system metal rod diameter: ≥3 mm
• Nickel-chromium wire diameter: 0.05 ~ 0.2 mm
• Ignition energy: 10 ~ 20 J
• Explosion pressure sensor detection range: 0 ~ 4000 kPa
• Explosion sensor pressure: ≥6000 kPa
• Explosion sensor measurement accuracy: ±0.1% FS
• Explosion sensor response time: ≤1 ms
• Gas sensor detection range: 0 ~ 200 kPa
• Gas sensor measurement accuracy: ±0.1% FS
• Temperature range: 0 ~ 150 °C
• Temperature accuracy: ±1 °C
• Host size: 830 mm × 650 mm × 1205 mm
• Electronic control box size: 320 mm × 500 mm × 505 mm
• Weight: 280 kg
• Power supply: AC 220 V ± 10%, 50 Hz ± 3 Hz
• Rated power: 400 W
• Ignition power: 3000 W
