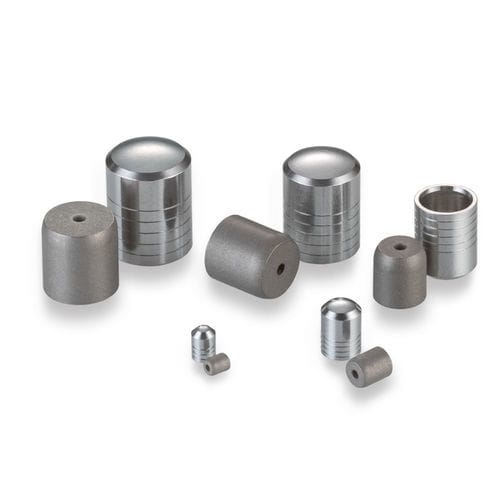

Cylindrical plug PLHA0931241A

threadedstainless steeltitanium

This member of our classic Lee Plug family is designed to seal passageways in high strength, high hardness materials such as titanium and inconel. Its construction from high strength material and unique geometry, coupled with the proven reliability of our Lee Plug expansion principal are what gives this plug a proof pressure rating of 32,000 psi (221 MPa). Sizes range from 0.093 to 0.343 inches. - Plug Diameter: 0.093 inches - Max. Sealable Passageway Diameter: 0.062 inches - Proof Pressure: 32,000 psi - Plug Material: 15-5PH - Housing Material: Inconel, Stainless Steel, or Titanium General Performance - 32,000 psi Proof Pressure Materials PART | MATERIAL | SPECIFICATION | FINISH Pin | 15-5 PH CRES | AMS 5659 | Passivated & Wax Plug | 15-5 PH CRES | AMS 5659 | Passivated/Chromium Composite Dimensional Views & Installation Hole Details - For dimensions, please refer to the Part Numbers & Specifications tab. Part Numbers & Specifications Part Number | D Max. | D Min. | C Nom. | M Nom. | K Nom. | L Nom. | Weight (g) | A Min. | N Dia. Ref. | W Min. | Ream Dia. PLHA0931241A | 0.0937 | 0.0928 | 0.134 | 0.106 | 0.067 | 0.083 | 0.09 | 0.122 | 0.062 | 0.06 | 0.0937 - 0.0947 All dimensions are in inches. This information is for reference only. Replacement Parts & Accessories Part Number | Description CUTA0930203A | Installation Tool Set CUTA0930103B | Extraction Tool Set CUTA0931103A | Gauge PLHA1031241A | Oversize Lee Plug Key Product Facts: - Plug Diameter: 0.093 inches - Max. Sealable Passageway Diameter: 0.062 inches - Proof Pressure: 32,000 psi - Plug Material: 15-5PH - Housing Material: Inconel, Stainless Steel, or Titanium
