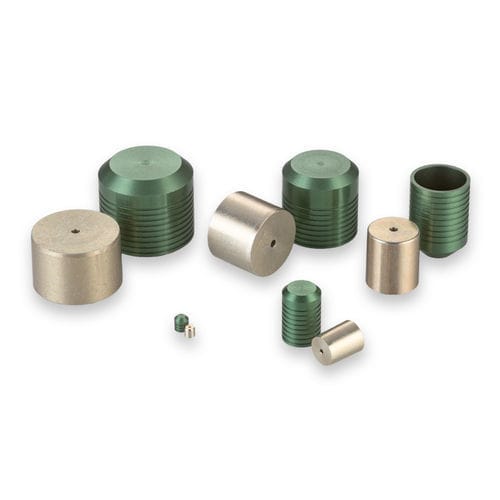

Cylindrical plug PLGA series

threadedaluminumforming

This member of our classic Lee Plug family is ideal for installation into aluminum manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.281 inches - Max. Sealable Passageway Diameter: 0.250 inches - Proof Pressure: 14,000 psi - Plug Material: Aluminum - Housing Material: Aluminum General Performance - Short: Class 1: 8, Class 2: 9, Class 3: 10 - Long: Class 1: 9, Class 2: 12, Class 3: 14 Materials - Pin: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Alodine Yellow per MIL-DTL-5541 & Wax - Plug: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Anodize Green per MIL-A-8625 Type II B Dimensional Views & Installation Hole Details For dimensions, please refer to the Part Numbers & Specifications tab. Part Numbers & Specifications - PLGA2810010A: Short, D Max.: 0.2812, D Min.: 0.2803, C Nom.: 0.255, M Nom.: 0.23, K Nom.: 0.245, L Nom.: 0.193, Weight: 0.69g - PLGA2811010A: Long, D Max.: 0.2812, D Min.: 0.2803, C Nom.: 0.37, M Nom.: 0.34, K Nom.: 0.247, L Nom.: 0.28, Weight: 1g Replacement Parts & Accessories - CUTA2810203A: Installation Tool Set - CUTA2810103B: Extraction Tool Set - CUTA2811103A: Gauge - PLGA2910010A: Short Oversize Lee Plug - PLGA2911010A: Long Oversize Lee Plug CAD Envelopes: 281 Aluminum Lee Plug Short Model, 281 Aluminum Lee Plug Long Model Handbook: Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions Product Video: Lee Plug Expansion Plug Features & Benefits Overview Article: Dual Sealing A.F.O.® Plugs Provide Pre-Charge and Purge Functions Technical Specifications / Features: - Plug Diameter: 0.281 inches - Max. Sealable Passageway Diameter: 0.250 inches - Proof Pressure: 14,000 psi - Plug Material: Aluminum (2024-T4 or T351, SAE AMS-QQ-A-225/6) - Housing Material: Aluminum - Pin Finish: Alodine Yellow per MIL-DTL-5541 & Wax - Plug Finish: Anodize Green per MIL-A-8625 Type II B - Sizes available: 0.093 to 0.656 inches
