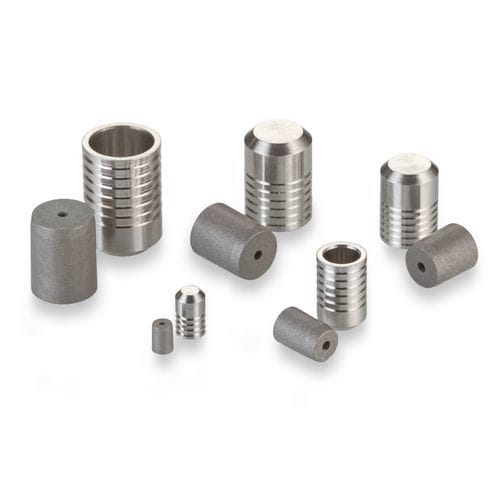

Cylindrical plug PLGM series

threadedstainless steelforming

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 2.5 to 8 mm. - Plug Diameter: 6.00 mm - Max. Sealable Passageway Diameter: 5.2 mm - Proof Pressure: 177 MPa - Plug Material: Stainless Steel - Housing Material: Inconel, Monel, MP35N, Stainless Steel, or Titanium General Performance - Class 1: Short 69, Long 108 - Class 2: Short 83, Long 147 - Class 3: Short 98, Long 177 Materials - Pin: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug: 416 CRES, QQ-S-763C, Rc 20-34, Passivated Part Numbers & Specifications - PLGM0600020A: Short, D Max. 6, D Min. 5.98, C Nom. 5.77, M Nom. 5.01, K Nom. 5.14, L Nom. 4.28, Weight 1.2 g, A Min. 5.5, N Dia. Ref. 5.2, W Min. 1.6 - PLGM0601020A: Long, D Max. 6, D Min. 5.98, C Nom. 8.84, M Nom. 8.11, K Nom. 5.14, L Nom. 7.24, Weight 1.8 g, A Min. 8.6, N Dia. Ref. 5.2, W Min. 1.6 Replacement Parts & Accessories - CUTA2180203A: Installation Tool Set - CUTM0600103B: Extraction Tool Set - CUTM0601103A: Gauge For dimensions, please refer to the Part Numbers & Specifications tab. CAD Envelopes: 6,00 Stainless Steel Metric Lee Plug Short Model, 6,00 Stainless Steel Metric Lee Plug Long Model Handbook: Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions (Page A47) Product Video: Lee Plug Expansion Plug Features & Benefits Overview Article: Dual Sealing A.F.O.® Plugs Provide Pre-Charge and Purge Functions Technical Specifications / Features: - Plug Diameter: 6.00 mm - Max. Sealable Passageway Diameter: 5.2 mm - Proof Pressure: 177 MPa - Plug Material: Stainless Steel (416 CRES, QQ-S-763C, Rc 20-34, Passivated) - Pin Material: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Housing Material: Inconel, Monel, MP35N, Stainless Steel, or Titanium - Available Sizes: 2.5 to 8 mm - Short and Long versions available (see table for dimensions)
