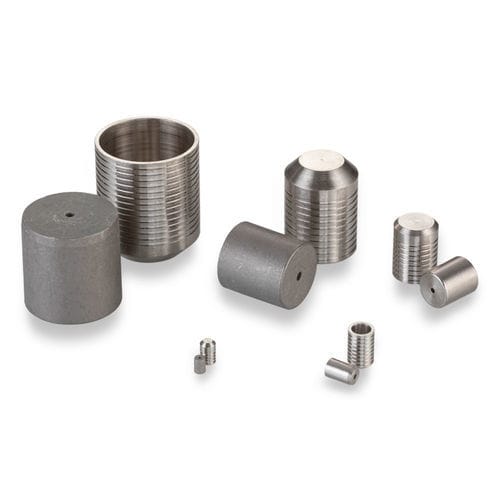

Cylindrical plug PLGA2811400A

threadednickel alloyforming

This member of our classic Lee Plug family is made from Monel, a nickel alloy that provides exceptional corrosion resistance in a variety of applications. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.281 inches - Max. Sealable Passageway Diameter: 0.250 inches - Proof Pressure: 24,000 psi - Plug Material: Monel - Housing Material: Monel General Performance - Proof Pressure (psi x 1000): Class 1 - 18, Class 2 - 20, Class 3 - 24 Materials - Pin: R405 Monel, Specification: QQ-N-281, Finish: Wax - Plug: R405 Monel, Specification: QQ-N-281 Part Numbers & Specifications - Part Number: PLGA2811400A, Size: Long, D Max.: 0.2812, D Min.: 0.2803, C Nom.: 0.37, M Nom.: 0.34, K Nom.: 0.244, L Nom.: 0.28, Weight: 3.1g, A Min.: 0.375, N Dia. Ref.: 0.25, W Min.: 0.063, Ream Dia. Class 1: 0.2812 - 0.2837, Class 2: 0.2812 - 0.2827, Class 3: 0.2812 - 0.2817 Replacement Parts & Accessories - Installation Tool Set: CUTA2810203A - Extraction Tool Set: CUTA2810103B - Gauge: CUTA2811103A - Long Oversize Lee Plug: PLGA2911400A Image Specifications - Dimensional View and Installation Hole Details available. For More Information - Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions Page A35 Key Technical Characteristics / Specifications: - Plug Diameter: 0.281 inches - Max. Sealable Passageway Diameter: 0.250 inches - Proof Pressure: 24,000 psi (Class 3) - Plug Material: R405 Monel (QQ-N-281) - Housing Material: Monel - Available sizes: 0.093 to 0.656 inches - Part Number Example: PLGA2811400A
