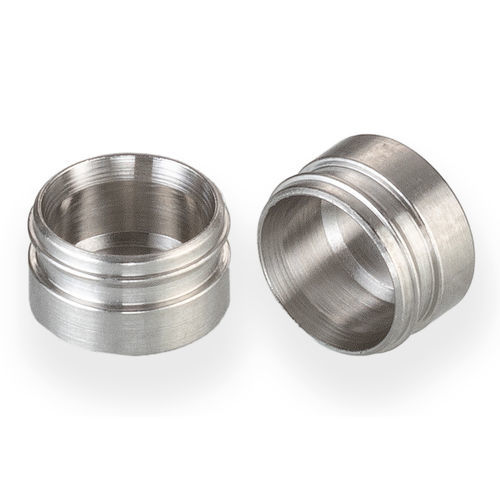

Round plug DLPM0610100S

threadedstainless steelaluminum

This single-piece stainless steel expansion plug uses our Drive Locking® technology to create a leak-tight seal in aluminum housings without the use of threads, sealants, or O-rings. The DL Series Plug includes an Installation Indicator feature that allows customers to visually verify that the plug was properly installed. With this feature, manufacturers can easily automate both the installation and verification processes, helping to reduce costs and improve reliability. Patent Pending - Plug Diameter: 5.95 mm - Max. Sealable Passageway Diameter: 5.30 mm - Rated Pressure: 69 bar - Plug Material: Stainless Steel - Housing Material: Aluminum General Performance Characteristic | Specification --- | --- Rated Pressure* | 69 bar Maximum Sealable Passageway Diameter | 5.30 mm Typical Installation Force in Aluminum | 5 - 6 kN Acceptable Housing Material | Aluminum *Pressure rating may be higher depending on specific application requirements. Materials Component | Material --- | --- Plug | 303 Stainless Steel Part Numbers & Specifications Part Number | Weight | Installation Hole Drawing Number --- | --- | --- DLPM0610100S | 0.25 g | 1INST115422S Replacement Parts & Accessories Part Number | Description --- | --- CCRT0600360S | 6 mm DL Series Plug Installation Tool - Dimensional and installation hole drawings available (see images). Key Technical Specifications: - Plug Diameter: 5.95 mm - Max. Sealable Passageway Diameter: 5.30 mm - Rated Pressure: 69 bar - Plug Material: 303 Stainless Steel - Housing Material: Aluminum - Typical Installation Force: 5 - 6 kN - Part Number: DLPM0610100S - Weight: 0.25 g - Installation Tool: CCRT0600360S
