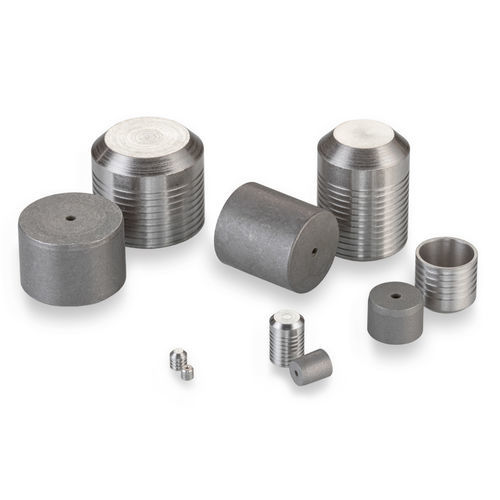

Cylindrical plug PLGA series

threadedstainless steeltitanium

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.218 inches - Max. Sealable Passageway Diameter: 0.187 inches - Proof Pressure: 26,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium General Performance - Short: Class 1: 10, Class 2: 12, Class 3: 14 - Long: Class 1: 16, Class 2: 22, Class 3: 26 Materials - Pin: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug: 416 CRES, QQ-S-763C, Rc 20-34, Passivated Part Numbers & Specifications - PLGA2180020A: Short, D Max.: 0.2187, D Min.: 0.2178, C Nom.: 0.187, M Nom.: 0.167, K Nom.: 0.179, L Nom.: 0.145, Weight: 0.83g - PLGA2181020A: Long, D Max.: 0.2187, D Min.: 0.2178, C Nom.: 0.307, M Nom.: 0.277, K Nom.: 0.181, L Nom.: 0.218, Weight: 1.4g Replacement Parts & Accessories - CUTA2180203A: Installation Tool Set - CUTA2180103B: Extraction Tool Set - CUTA2181103A: Gauge - PLGA2280020A: Short Oversize Lee Plug - PLGA2281020A: Long Oversize Lee Plug For dimensions, please refer to the Part Numbers & Specifications tab. For more information: Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions Page A27 CAD Envelopes available for Short and Long Models Installation & Manufacturing Tools: Plug Installation Tool, Plug Extraction Tool Set, Plug Gauge Key Product Facts - Plug Diameter: 0.218 inches - Max. Sealable Passageway Diameter: 0.187 inches - Proof Pressure: 26,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium
