Cylindrical plug PLGM0250020A

threadedstainless steelforming

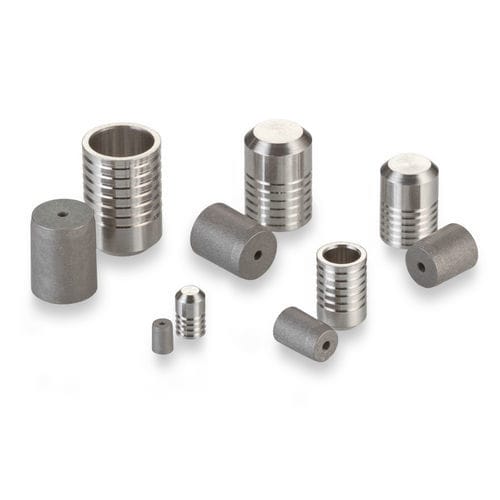

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 2.5 to 8 mm. - Plug Diameter: 2.50 mm - Max. Sealable Passageway Diameter: 1.7 mm - Proof Pressure: 137 MPa - Plug Material: Stainless Steel - Housing Material: Inconel, Monel, MP35N, Stainless Steel, or Titanium General Performance - Proof Pressure (MPa): - Class 1: 98 - Class 2: 113 - Class 3: 137 Materials - Pin: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug: 416 CRES, QQ-S-763C, Rc 20-34, Passivated Part Numbers & Specifications - Part Number: PLGM0250020A - Size: Short - Weight: 0.11 g - Ream Diameter: - Class 1: H11 * 2.50 - 2.56 mm - Class 2: H9 * 2.50 - 2.54 mm - Class 3: H7 * 2.50 - 2.51 mm Replacement Parts & Accessories - Installation Tool Set: CUTA0930203A - Extraction Tool Set: CUTM0250103B - Gauge: CUTM0251103A For dimensions, please refer to the Part Numbers & Specifications tab. Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions Page A44 CAD Envelope: 2,50 Stainless Steel Metric Lee Plug Model Lee Plug Expansion Plug Features & Benefits Overview Dual Sealing A.F.O.® Plugs Provide Pre-Charge and Purge Functions Technical Specifications: - Plug Diameter: 2.50 mm - Max. Sealable Passageway Diameter: 1.7 mm - Proof Pressure: 137 MPa (Class 3) - Plug Material: Stainless Steel (416 CRES, QQ-S-763C, Rc 20-34, Passivated) - Housing Material: Inconel, Monel, MP35N, Stainless Steel, or Titanium - Part Number: PLGM0250020A - Weight: 0.11 g - Size: Short - Ream Diameter: H11 * 2.50 - 2.56 mm (Class 1), H9 * 2.50 - 2.54 mm (Class 2), H7 * 2.50 - 2.51 mm (Class 3)
