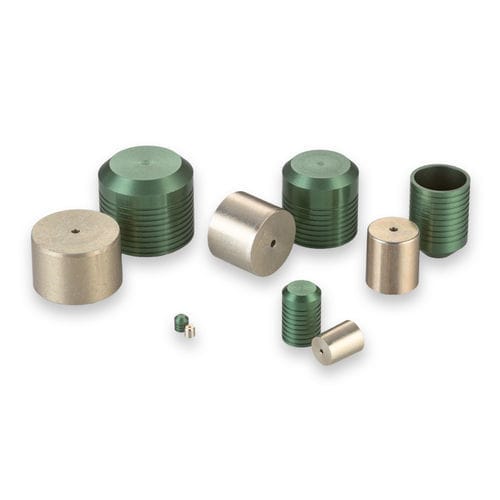

Cylindrical plug PLGA series

threadedaluminumforming

This member of our classic Lee Plug family is ideal for installation into aluminum manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.468 inches - Max. Sealable Passageway Diameter: 0.437 inches - Proof Pressure: 12,000 psi - Plug Material: Aluminum - Housing Material: Aluminum General Performance - Class 1: Short 6, Long 7 - Class 2: Short 8, Long 10 - Class 3: Short 10, Long 12 Materials - Pin: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Alodine Yellow per MIL-DTL-5541 & Wax - Plug: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Anodize Green per MIL-A-8625 Type II B Dimensional Views & Installation Hole Details For dimensions, please refer to the Part Numbers & Specifications tab. Part Numbers & Specifications - PLGA4680010A: Short, Weight 2.9g - PLGA4681010A: Long, Weight 4.5g Replacement Parts & Accessories - CUTA4680203A: Installation Tool Set - CUTA4680103B: Extraction Tool Set - CUTA4681103A: Gauge - PLGA4780010A: Short Oversize Lee Plug - PLGA4781010A: Long Oversize Lee Plug Key Product Facts - Plug Diameter: 0.468 inches - Max. Sealable Passageway Diameter: 0.437 inches - Proof Pressure: 12,000 psi - Plug Material: Aluminum - Housing Material: Aluminum Characteristics / Technical Specifications - Product Family: Lee Plug - Material: 2024-T4 or T351 Aluminum - Finish: Alodine Yellow per MIL-DTL-5541 & Wax (Pin), Anodize Green per MIL-A-8625 Type II B (Plug) - Sizes: 0.093 to 0.656 inches - Proof Pressure: Up to 12,000 psi - Applications: Sealing cross-drilled holes in aluminum manifolds
