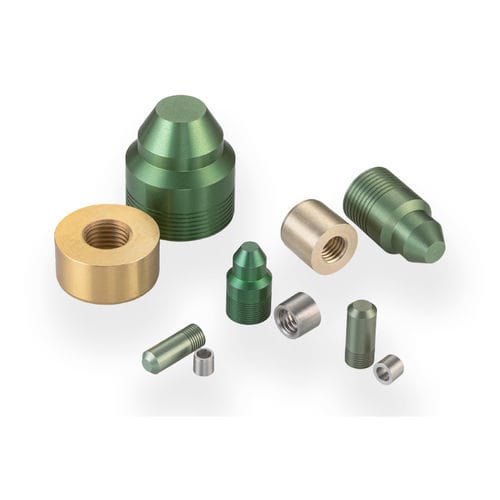

Cylindrical plug PLRA1560010A

threadedaluminumsupport

This R.F.O. plug is designed to apply radial force only on an installation hole. This plug can be used to seal openings in thin shells as well as fragile materials. It is engineered to fit into passages without the need for a support shoulder and there is no downward pressure during installation. The R.F.O. plug is installed using The Lee Company’s hydraulic installation tool. Sizes range from 0.156 to 0.875 inches. - Plug Diameter: 0.156 inches - Max. Sealable Passageway Diameter: 0.156 inches - Proof Pressure: 6000 psi - Plug Material: Aluminum - Housing Material: Aluminum General Performance - Proof Pressure (psi x 1000): Class 2: 5, Class 3: 6 Materials - Pin: 416 CRES, Specification: QQ-S-763C, Finish: Passivated - Plug: 2024-T4 or T351 Aluminum, Specification: SAE AMS-QQ-A-225/6, Finish: Anodize Green per MIL-A-8625 Type II B Part Numbers & Specifications - Part Number: PLRA1560010A - D Max.: 0.1562 - D Min.: 0.1553 - C Nom.: 0.417 - M Nom.: 0.38 - K Nom.: 0.125 - L Nom.: 0.115 - X: 0.09 - Z: .086-64 - Weight (g): 0.3 - A Min.: 0.16 - B Min.: 0.06 - Ream Dia. Class 2: 0.1562 - 0.1577 - Ream Dia. Class 3: 0.1562 - 0.1567 Replacement Parts & Accessories - Hydraulic Installation Tool: CUTX0100000B - Installation Tool Set: CUTA1565205A - Extraction Tool Set: CUTA1566205B - R.F.O Oversize Plug: PLRA1660010A For dimensions, please refer to the Part Numbers & Specifications tab. Key Product Facts: - Plug Diameter: 0.156 inches - Max. Sealable Passageway Diameter: 0.156 inches - Proof Pressure: 6000 psi - Plug Material: Aluminum - Housing Material: Aluminum Installation Procedure: PS 203 REV L: Design Criteria and Installation and Extraction Procedures for Lee Plug Expansion Plugs Installation & Manufacturing Tools: - Plug Installation Tool: CUTA1565205A - Plug Extraction Tool Set: CUTA1566205B - Lee R.F.O. Hydraulic Installation Tool: CUTX0100000B CAD Envelope: CAD 156 Aluminum RFO Plug Model Handbook: Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions Resource: Lee Plug Expansion Plug Features & Benefits Overview Article: Dual Sealing A.F.O. Plugs Provide Pre-Charge and Purge Functions Technical Specifications: - Plug Diameter: 0.156 inches - Max. Sealable Passageway Diameter: 0.156 inches - Proof Pressure: 6000 psi - Plug Material: Aluminum (2024-T4 or T351, Anodize Green per MIL-A-8625 Type II B) - Pin Material: 416 CRES, Passivated - Housing Material: Aluminum - Sizes: 0.156 to 0.875 inches
