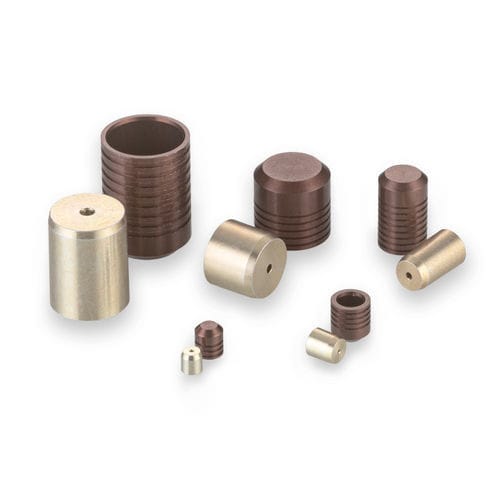

Cylindrical plug PLGM0350010A

threadedaluminumforming

This member of our classic Lee Plug family is ideal for installation into aluminum manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 2.5 to 8 millimeters. - Plug Diameter: 3.50 mm - Max. Sealable Passageway Diameter: 2.7 mm - Proof Pressure: 88 MPa - Plug Material: Aluminum - Housing Material: Aluminum General Performance - Class 1: 49 MPa - Class 2: 59 MPa - Class 3: 88 MPa Materials - Pin: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Alodine Yellow per MIL-DTL-5541 & Wax - Plug: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Anodize Brown per MIL-A-8625 Type II B Part Numbers & Specifications - Part Number: PLGM0350010A - Size: Short - D Max.: 3.5 mm - D Min.: 3.48 mm - C Nom.: 3.66 mm - M Nom.: 3 mm - K Nom.: 2.56 mm - L Nom.: 2.66 mm - Weight: 0.09 g - A Min.: 3.4 mm - N Dia. Ref.: 2.7 mm - W Min.: 3.2 mm - Ream Dia. Class 1: H10 * 3.50 - 3.56 - Ream Dia. Class 2: H9 * 3.50 - 3.54 - Ream Dia. Class 3: H7 * 3.50 - 3.51 Replacement Parts & Accessories - Installation Tool Set: CUTA1250203A - Extraction Tool Set: CUTM0350103B - Gauge: CUTM0351103A For dimensions, please refer to the Part Numbers & Specifications tab. For more information, see the Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions (Page A38). CAD Envelope available: 3,50 Aluminum Metric Lee Plug Model Key Product Facts - Plug Diameter: 3.50 mm - Max. Sealable Passageway Diameter: 2.7 mm - Proof Pressure: 88 MPa - Plug Material: Aluminum - Housing Material: Aluminum Characteristics / Technical Specifications - Product Family: Lee Plug - Material: 2024-T4 or T351 Aluminum - Finish: Alodine Yellow per MIL-DTL-5541 & Wax (Pin), Anodize Brown per MIL-A-8625 Type II B (Plug) - Proof Pressure: Up to 88 MPa (Class 3) - Plug Diameter: 3.50 mm - Max. Sealable Passageway Diameter: 2.7 mm - Weight: 0.09 g - Part Number: PLGM0350010A
