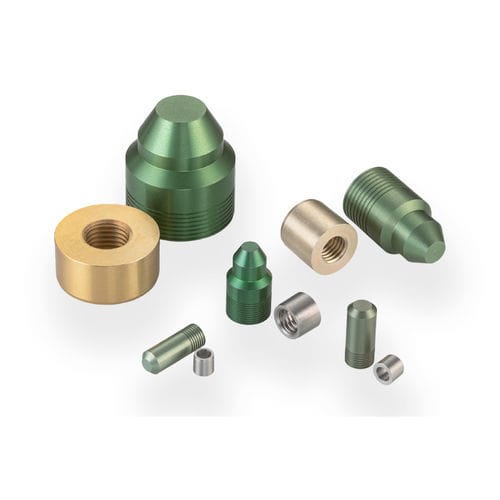

Cylindrical plug PLRA4680010A

threadedaluminumhousing

This R.F.O. plug is designed to apply radial force only on an installation hole. This plug can be used to seal openings in thin shells as well as fragile materials. It is engineered to fit into passages without the need for a support shoulder and there is no downward pressure during installation. The R.F.O. plug is installed using The Lee Company’s hydraulic installation tool. Sizes range from 0.156 to 0.875 inches. - Plug Diameter: 0.468 inches - Max. Sealable Passageway Diameter: 0.468 inches - Proof Pressure: 3500 psi - Plug Material: Aluminum - Housing Material: Aluminum General Performance - Class 2: Proof Pressure (psi x 1000): 2.5 - Class 3: Proof Pressure (psi x 1000): 3.5 Materials - Pin: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Alodine Yellow per MIL-DTL-5541 - Plug: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Anodize Green per MIL-A-8625 Type II B Part Numbers & Specifications - Part Number: PLRA4680010A - D Max.: 0.4687 - D Min.: 0.4678 - C Nom.: 0.8 - M Nom.: 0.45 - MM Nom.: 0.64 - K Nom.: 0.428 - L Nom.: 0.355 - X: 0.250-28 - Y: 0.39 - Z: 0.216-28 - Weight (g): 3.7 - A Min.: 0.4 - B Min.: 0.1 - Ream Dia. Class 2: 0.4687 - 0.4702 - Ream Dia. Class 3: 0.4687 - 0.4692 Replacement Parts & Accessories - Part Number: CUTX0100000B, Description: Hydraulic Installation Tool - Part Number: CUTA4685205A, Description: Installation Tool Set - Part Number: CUTA4686205B, Description: Extraction Tool Set - Part Number: PLRA4780010A, Description: R.F.O Oversize Plug Image Specifications - Dimensional View and Installation Hole Details available in the image gallery. Technical Specifications / Features - Radial force only plug for sealing thin shells and fragile materials - No support shoulder required for installation - No downward pressure during installation - Hydraulic installation tool required - Plug diameter: 0.468 inches - Proof pressure: up to 3500 psi - Material: 2024-T4 or T351 Aluminum - Finish: Alodine Yellow (Pin), Anodize Green (Plug) - Sizes available: 0.156 to 0.875 inches
