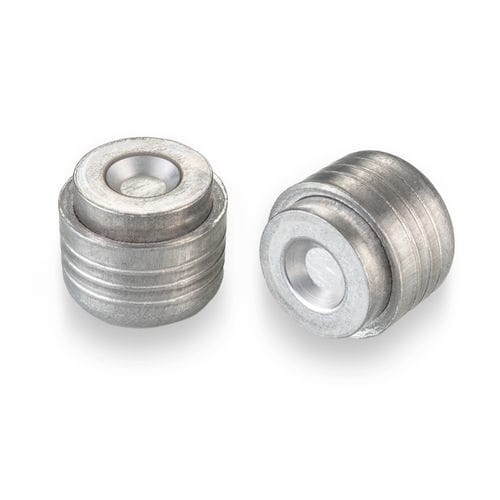

Tapered plug PLBA1103610S

threadednon-threadedstainless steel

This pre-assembled aluminum tapered expansion plug is engineered to seal fluid passages in metal castings, creating a leak-tight seal without the use of threads, O-rings, or sealants. Its unique tapered design eliminates the need for tight manufacturing tolerances and allows designers to minimize the wall thickness around the plug, even for brittle housing materials. The pre-assembled plug facilitates a reliable automated or manual installation process. It is ideal for high volume applications. - Plug Diameter: 11.03 mm - Max. Sealable Passageway Diameter: 10.39 mm - Rated Pressure: 35 bar - Plug Material: Aluminum - Housing Material: Aluminum, Cast Iron, Stainless Steel, or Steel General Performance - Rated Pressure*: 35 bar - Maximum Sealable Passageway Diameter: 10.39 mm - Maximum Temperature Rating: 135°C - Typical Installation Force in Aluminum: 6.2 kN - Acceptable Housing Materials: Aluminum, Cast Iron, Stainless Steel, and Steel *Pressure rating may be higher depending on specific application requirements. Materials - Pin: 6061 Aluminum - Plug: 6061 Aluminum Part Numbers & Specifications - PART NUMBER: PLBA1103610S - WEIGHT: 1.5 g - INSTALLATION HOLE DRAWING NUMBER: 1INST002870S Replacement Parts & Accessories - PART NUMBER: PLBT0110901S, DESCRIPTION: 11 mm Short Betaplug Installation Tool - PART NUMBER: PLBT1100012S, DESCRIPTION: 11 mm Short Betaplug Tapered Reamer - PART NUMBER: PLBT1100014S, DESCRIPTION: 11 mm Short Betaplug Tapered Reamer, Rough Finish - Dimensional View: 2D and installation hole drawings available (see images). - For More Information: See the Industrial MicroHydraulics Handbook of Automotive and Industrial Solutions, Page A79-A80, A85-A88. Key Technical Specifications: - Plug Diameter: 11.03 mm - Max. Sealable Passageway Diameter: 10.39 mm - Rated Pressure: 35 bar - Maximum Temperature Rating: 135°C - Typical Installation Force in Aluminum: 6.2 kN - Plug Material: 6061 Aluminum - Acceptable Housing Materials: Aluminum, Cast Iron, Stainless Steel, Steel - Part Number: PLBA1103610S - Weight: 1.5 g - Installation Hole Drawing Number: 1INST002870S
