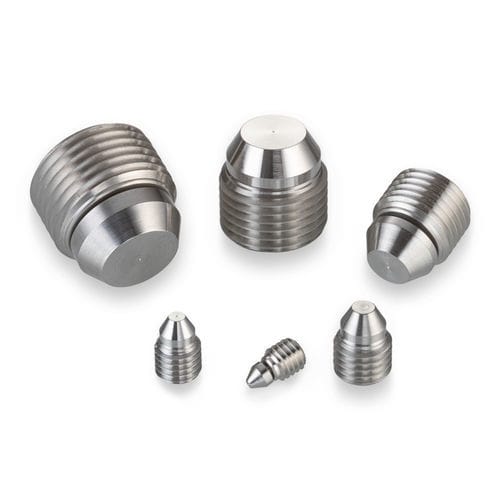

Cylindrical plug PLAA3124010A

threadedstainless steelaluminum

This thread-retained plug is designed to apply axial force only on the installation hole, making it ideal for sealing holes with thin walls. It uses a metal-to-metal seal for high pressure applications and is both removable and reusable, providing easy access to sealed passageways. A.F.O. plugs feature a unique floating seal that self-aligns to allow for threaded holes that are not perfectly concentric with the through hole. Sizes range from 0.19 to 0.75 inches. - Plug Diameter: 0.312 inches - Max. Sealable Passageway Diameter: 0.209 inches - Proof Pressure: 56,000 psi - Plug Material: Stainless Steel - Housing Material: Aluminum, or Stainless Steel General Performance - Proof Pressure (psi x 1000): Stainless Steel: 56, Aluminum: 26, AISI 8630: 56 Materials - Threaded Body: 303 CRES, Specification: QQ-S-763C and AMS 5640 Type I, Finish: Passivate - Nose: 15-5 PH CRES, Specification: AMS 5659, Finish: Passivate Dimensional Views & Installation Hole Details For dimensions, please refer to the Part Numbers & Specifications tab. Part Numbers & Specifications - Part Number: PLAA3124010A - A Min.: 0.136 - A Max.: 0.209 - D Nom.: 0.119 - E* Min.: 0.412 - F Min.: 0.09 - Weight (g): 2.1 - B Thread: 0.312 - 24 - C Ref.: 0.415 - G Hex: 0.156 *Dimension (E) will vary with changes to dimension (A). All dimensions are in inches. This information is for reference only. Replacement Parts & Accessories - Coining Tool Part Number: CUTA3120163A - Required Tool Rotation: 150° +/- 30° - (Ref) Coining Torque (Aluminum Housing): 85 in-lbs - Installation Torque (Aluminum Housing): 75 in-lbs - (Ref) Coining Torque (Steel/AISI 8630 Housing): 180 in-lbs - Installation Torque (Steel/AISI 8630 Housing): 90 in-lbs - CAD Envelope: 312 Stainless Steel A.F.O. Plug Model (available upon request) - Handbook: Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions (see PDF in documents) - Product Video: Lee Plug Expansion Plug Features & Benefits Overview (see video link) - Article: Dual Sealing A.F.O.® Plugs Provide Pre-Charge and Purge Functions Key Technical Specifications: - Plug Diameter: 0.312 inches - Max. Sealable Passageway Diameter: 0.209 inches - Proof Pressure: 56,000 psi - Plug Material: Stainless Steel - Housing Material: Aluminum, or Stainless Steel - Threaded Body Material: 303 CRES - Nose Material: 15-5 PH CRES - Thread: 0.312 - 24 - Weight: 2.1 g
