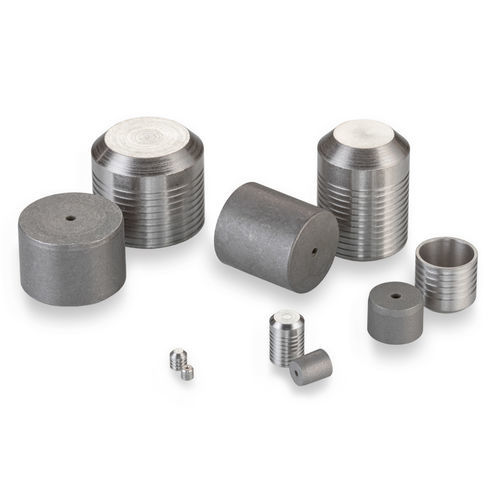

Cylindrical plug PLGA series

threadedstainless steeltitanium

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.406 inches - Max. Sealable Passageway Diameter: 0.375 inches - Proof Pressure: 21,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium General Performance - Short: Class 1: 10, Class 2: 12, Class 3: 14 - Long: Class 1: 16, Class 2: 18, Class 3: 21 Materials - Pin: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug: 416 CRES, QQ-S-763C, Rc 20-34, Passivated Part Numbers & Specifications - PLGA4060020A: Short, 0.4062 - 0.4087 - PLGA4061020A: Long, 0.4062 - 0.4087 Replacement Parts & Accessories - CUTA4060303A: Installation Tool Set - CUTA4060103B: Extraction Tool Set - CUTA4061103A: Gauge - PLGA4160020A: Short Oversize Lee Plug - PLGA4161020A: Long Oversize Lee Plug Dimensional Views & Installation Hole Details: For dimensions, please refer to the Part Numbers & Specifications tab. Key Product Facts: - Plug Diameter: 0.406 inches - Max. Sealable Passageway Diameter: 0.375 inches - Proof Pressure: 21,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium
