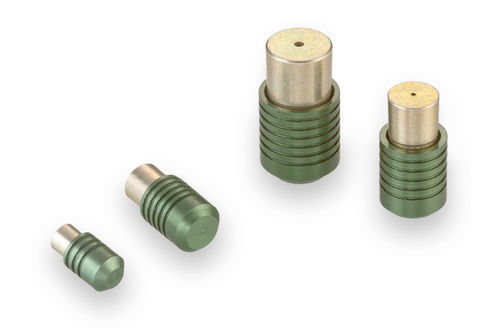

Cylindrical plug PLPA0930010A

threadedaluminumexpansion

This Quick Installation Plug is a pre-assembled plug set that combines ease of handling and installation with the proven reliability and performance of Lee expansion plugs. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, the lands and grooves form independent seals and retaining rings. Sizes range from 0.093 to 0.187 inches. - Plug Diameter: 0.093 inches - Max. Sealable Passageway Diameter: 0.062 inches - Proof Pressure: 10,000 psi - Plug Material: Aluminum - Housing Material: Aluminum General Performance - Proof Pressure (psi x 1000): Class 1: 6, Class 2: 8, Class 3: 10 Materials - Pin: 2024-T4 Aluminum, SAE AMS-QQ-A-225/6 and AMS 4119, Alodine Yellow per MIL-DTL-5541 & Wax - Plug: 2024-T4 Aluminum, SAE AMS-QQ-A-225/6 and AMS 4120, Anodize Green per MIL-A-8625 Type IIB Part Numbers & Specifications - Part Number: PLPA0930010A - Size: Short - D Max.: 0.0937 - D Min.: 0.0928 - B Nom.: 0.178 - C Nom.: 0.123 - M Nom.: 0.103 - K Nom.: 0.069 - Weight: 0.025 g - A Min.: 0.118 - N Dia. Ref.: 0.062 - W Min.: 0.125 - Ream Dia. Class 1: 0.0937 – 0.0962 - Ream Dia. Class 2: 0.0937 – 0.0952 - Ream Dia. Class 3: 0.0937 – 0.0942 Replacement Parts & Accessories - CUTA0930303A: Seating Tool - CUTA0930203A: Installation Tool Set - CUTA0930103B: Extraction Tool Set - CUTA0931103A: Gauge - PLGA1030010A: Oversize Lee Plug For dimensions, please refer to the Part Numbers & Specifications tab. Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions Page A32 Key Product Facts: - Plug Diameter: 0.093 inches - Max. Sealable Passageway Diameter: 0.062 inches - Proof Pressure: 10,000 psi - Plug Material: Aluminum - Housing Material: Aluminum Characteristics / Technical Specifications - Product Type: Quick Installation Plug (QIP®) - Plug Diameter: 0.093 inches - Max. Sealable Passageway Diameter: 0.062 inches - Proof Pressure: 10,000 psi - Plug Material: 2024-T4 Aluminum - Housing Material: 2024-T4 Aluminum - Pin Finish: Alodine Yellow per MIL-DTL-5541 & Wax - Plug Finish: Anodize Green per MIL-A-8625 Type IIB - Available Sizes: 0.093 to 0.187 inches - Part Number: PLPA0930010A - Weight: 0.025 g
