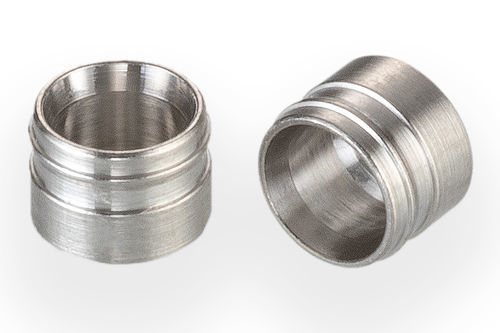

Cylindrical plug DLPM0410100S

threadedstainless steelaluminum

This single-piece stainless steel expansion plug uses Drive Locking® technology to create a leak-tight seal in aluminum housings without the use of threads, sealants, or O-rings. The DL Series Plug includes an Installation Indicator feature that allows customers to visually verify that the plug was properly installed. With this feature, manufacturers can easily automate both the installation and verification processes, helping to reduce costs and improve reliability. - Patent Pending - Plug Diameter: 3.95 mm - Max. Sealable Passageway Diameter: 3.30 mm - Rated Pressure: 69 bar - Plug Material: Stainless Steel - Housing Material: Aluminum General Performance - Rated Pressure: 69 bar - Maximum Sealable Passageway Diameter: 3.30 mm - Typical Installation Force in Aluminum: 5 - 6 kN - Acceptable Housing Material: Aluminum Materials - Plug: 303 Stainless Steel Part Numbers & Specifications - Part Number: DLPM0410100S - Weight: 0.08 g - Installation Hole Drawing Number: 1INST114108S Replacement Parts & Accessories - Part Number: CCRT0400360S - Description: 4 mm DL Series Plug Installation Tool - Dimensional and installation drawings available (see images). Key Product Facts - Plug Diameter: 3.95 mm - Max. Sealable Passageway Diameter: 3.30 mm - Rated Pressure: 69 bar - Plug Material: Stainless Steel (303) - Housing Material: Aluminum - Typical Installation Force: 5 - 6 kN - Installation Indicator feature for visual verification - Patent Pending
