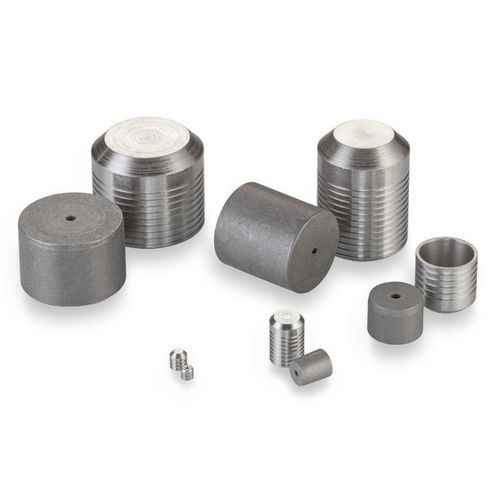

Cylindrical plug PLGA series

threadedstainless steeltitanium

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.531 inches - Max. Sealable Passageway Diameter: 0.500 inches - Proof Pressure: 18,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium General Performance Proof Pressure (psi x 1000) - Class 1: Short 10, Long 14 - Class 2: Short 12, Long 16 - Class 3: Short 14, Long 18 Materials - Pin: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug: 416 CRES, QQ-S-763C, Rc 20-34, Passivated Dimensional Views & Installation Hole Details For dimensions, please refer to the Part Numbers & Specifications tab. Part Numbers & Specifications - PLGA5310020A: Short, D Max. 0.5312, D Min. 0.5303, C Nom. 0.52, M Nom. 0.46, K Nom. 0.494, L Nom. 0.375, Weight 13g, A Min. 0.486, N Dia. Ref. 0.5, W Min. 0.063, Ream Dia. Class 1: 0.5312 - 0.5337, Class 2: 0.5312 - 0.5327, Class 3: 0.5312 - 0.5317 - PLGA5311020A: Long, D Max. 0.5312, D Min. 0.5303, C Nom. 0.68, M Nom. 0.59, K Nom. 0.495, L Nom. 0.522, Weight 17g, A Min. 0.625, N Dia. Ref. 0.5, W Min. 0.063, Ream Dia. Class 1: 0.5312 - 0.5337, Class 2: 0.5312 - 0.5327, Class 3: 0.5312 - 0.5317 Replacement Parts & Accessories - CUTA5310203A: Installation Tool Set - CUTA5310103B: Extraction Tool Set - CUTA5311103A: Gauge - PLGA5410020A: Short Oversize Lee Plug - PLGA5411020A: Long Oversize Lee Plug Key Product Facts: - Plug Diameter: 0.531 inches - Max. Sealable Passageway Diameter: 0.500 inches - Proof Pressure: 18,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium
