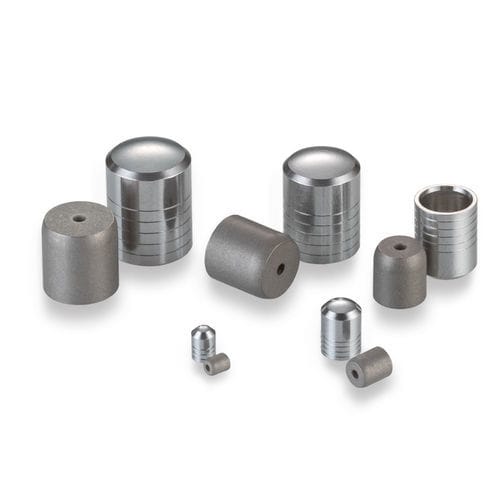

Cylindrical plug PLHA3431241A

threadedstainless steeltitanium

This member of our classic Lee Plug family is designed to seal passageways in high strength, high hardness materials such as titanium and inconel. Its construction from high strength material and unique geometry, coupled with the proven reliability of our Lee Plug expansion principal are what gives this plug a proof pressure rating of 32,000 psi (221 MPa). Sizes range from 0.093 to 0.343 inches. - Plug Diameter: 0.343 inches - Max. Sealable Passageway Diameter: 0.312 inches - Proof Pressure: 32,000 psi - Plug Material: 15-5PH - Housing Material: Inconel, Stainless Steel, or Titanium General Performance - 32,000 psi Proof Pressure Materials - Pin: 15-5 PH CRES, AMS 5659, Passivated & Wax - Plug: 15-5 PH CRES, AMS 5659, Passivated/Chromium Composite Part Numbers & Specifications - Part Number: PLHA3431241A - D Max.: 0.3437 - D Min.: 0.3428 - C Nom.: 0.445 - M Nom.: 0.39 - K Nom.: 0.302 - L Nom.: 0.305 - Weight: 4.7 g - A Min.: 0.41 - N Dia. Ref.: 0.312 - W Min.: 0.06 - Ream Dia.: 0.3437 - 0.3447 All dimensions are in inches. This information is for reference only. Replacement Parts & Accessories - Part Number: CUTA3430203A, Description: Installation Tool Set - Part Number: CUTA3430103B, Description: Extraction Tool Set - Part Number: CUTA3431103A, Description: Gauge - Part Number: PLHA3531241A, Description: Oversize Lee Plug For dimensions, please refer to the Part Numbers & Specifications tab. Characteristics / Technical Specifications - Product: 343 15-5PH High Strength Lee Plug® - Plug Diameter: 0.343 inches - Max. Sealable Passageway Diameter: 0.312 inches - Proof Pressure: 32,000 psi (221 MPa) - Plug Material: 15-5PH - Housing Material: Inconel, Stainless Steel, or Titanium - Pin Material: 15-5 PH CRES (AMS 5659, Passivated & Wax) - Plug Material: 15-5 PH CRES (AMS 5659, Passivated/Chromium Composite) - Part Number Example: PLHA3431241A - Weight: 4.7 g - Size Range: 0.093 to 0.343 inches
