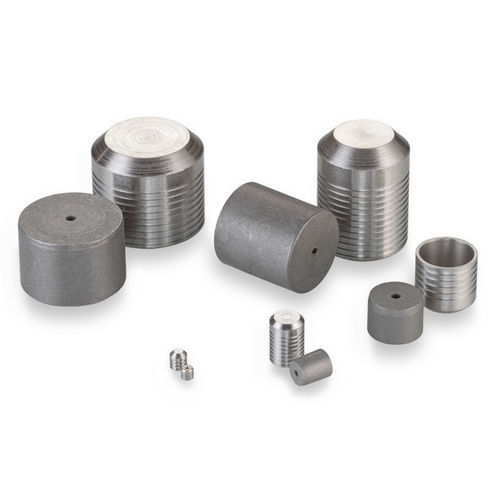

Cylindrical plug PLGA series

threadedstainless steelforming

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.093 inches - Max. Sealable Passageway Diameter: 0.062 inches - Proof Pressure: 24,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium General Performance Proof Pressure (psi x 1000) - Short: Class 1: 10, Class 2: 13, Class 3: 15 - Long: Class 1: 18, Class 2: 20, Class 3: 24 Materials - Pin: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug: 416 CRES, QQ-S-763C, Rc 20-34, Passivated Part Numbers & Specifications - PLGA0930020A: Short, D Max.: 0.0937, D Min.: 0.0928, C Nom.: 0.098, M Nom.: 0.078, K Nom.: 0.069, L Nom.: 0.062, Weight: 0.07g - PLGA0931020A: Long, D Max.: 0.0937, D Min.: 0.0928, C Nom.: 0.143, M Nom.: 0.123, K Nom.: 0.069, L Nom.: 0.095, Weight: 0.11g Replacement Parts & Accessories - CUTA0930203A: Installation Tool Set - CUTA0930103B: Extraction Tool Set - CUTA0931103A: Gauge - PLGA1030020A: Short Oversize Lee Plug - PLGA1031020A: Long Oversize Lee Plug For dimensions, please refer to the Part Numbers & Specifications tab. For more information: Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions Page A25 CAD Envelopes: 093 Stainless Steel Lee Plug Short Model, 093 Stainless Steel Lee Plug Long Model (download links available on the site) Key Technical Specifications: - Plug Diameter: 0.093 inches - Max. Sealable Passageway Diameter: 0.062 inches - Proof Pressure: 24,000 psi - Plug Material: Stainless Steel - Housing Material: Stainless Steel, or Titanium - Pin Material: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug Material: 416 CRES, QQ-S-763C, Rc 20-34, Passivated - Available Sizes: 0.093 to 0.656 inches
