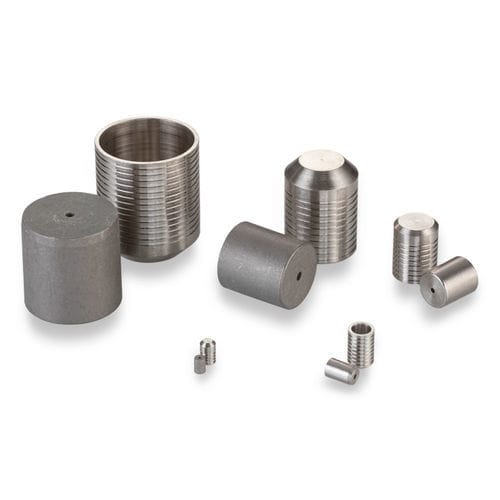

Cylindrical plug PLGA3121400A

threadednickel alloyforming

This member of our classic Lee Plug family is made from Monel, a nickel alloy that provides exceptional corrosion resistance in a variety of applications. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches. - Plug Diameter: 0.312 inches - Max. Sealable Passageway Diameter: 0.281 inches - Proof Pressure: 23,000 psi - Plug Material: Monel - Housing Material: Monel General Performance - Proof Pressure (psi x 1000): Class 1: 18, Class 2: 20, Class 3: 23 Materials - Pin: R405 Monel, Specification: QQ-N-281, Finish: Wax - Plug: R405 Monel, Specification: QQ-N-281 Part Numbers & Specifications - Part Number: PLGA3121400A, Size: Long, D Max.: 0.3124, D Min.: 0.3115, C Nom.: 0.436, M Nom.: 0.406, K Nom.: 0.276, L Nom.: 0.308, Weight: 4.5 g, A Min.: 0.423, N Dia. Ref.: 0.281, W Min.: 0.063, Ream Dia. Class 1: 0.3124 - 0.3149, Class 2: 0.3124 - 0.3139, Class 3: 0.3124 - 0.3129 Replacement Parts & Accessories - Part Number: CUTA3120203A, Description: Installation Tool Set - Part Number: CUTA3120103B, Description: Extraction Tool Set - Part Number: CUTA3121103A, Description: Gauge - Part Number: PLGA3221400A, Description: Long Oversize Lee Plug Key Product Facts - Plug Diameter: 0.312 inches - Max. Sealable Passageway Diameter: 0.281 inches - Proof Pressure: 23,000 psi - Plug Material: Monel - Housing Material: Monel Characteristics / Technical Specifications - Product: 312 Monel Lee Plug® - Plug Diameter: 0.312 inches - Max. Sealable Passageway Diameter: 0.281 inches - Proof Pressure: 23,000 psi - Plug Material: Monel (R405 Monel, QQ-N-281) - Housing Material: Monel - Available Sizes: 0.093 to 0.656 inches - Part Number Example: PLGA3121400A - Weight: 4.5 g
