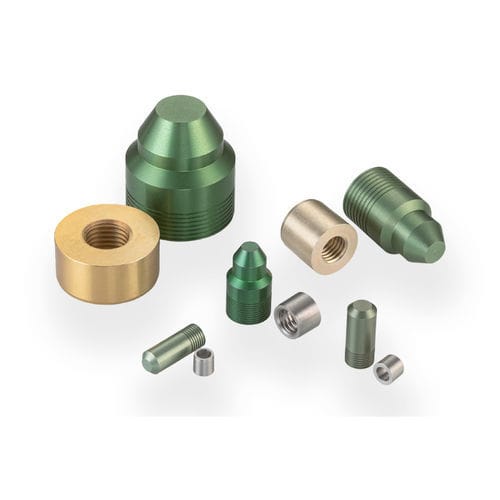

Round plug PLRA5000010A

threadedaluminumsupport

This R.F.O. plug is designed to apply radial force only on an installation hole. This plug can be used to seal openings in thin shells as well as fragile materials. It is engineered to fit into passages without the need for a support shoulder and there is no downward pressure during installation. The R.F.O. plug is installed using The Lee Company’s hydraulic installation tool. Sizes range from 0.156 to 0.875 inches. - Plug Diameter: 0.500 inches - Max. Sealable Passageway Diameter: 0.500 inches - Proof Pressure: 3500 psi - Plug Material: Aluminum - Housing Material: Aluminum General Performance - Class 2: Proof Pressure (psi x 1000): 2.5 - Class 3: Proof Pressure (psi x 1000): 3.5 Materials - Pin: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Alodine Yellow per MIL-DTL-5541 - Plug: 2024-T4 or T351 Aluminum, SAE AMS-QQ-A-225/6, Anodize Green per MIL-A-8625 Type II B Part Numbers & Specifications - Part Number: PLRA5000010A - D Max.: 0.5 - D Min.: 0.4991 - C Nom.: 0.87 - M Nom.: 0.5 - MM Nom.: 0.72 - K Nom.: 0.451 - L Nom.: 0.415 - X: 0.250-28 - Y: 0.39 - Z: 0.216-28 - Weight: 4.6 g - A Min.: 0.4 - B Min.: 0.11 - Ream Dia. Class 2: 0.5 - 0.5015 - Ream Dia. Class 3: 0.5 - 0.5005 Replacement Parts & Accessories - CUTX0100000B: Hydraulic Installation Tool - CUTA5005205A: Installation Tool Set - CUTA5006205B: Extraction Tool Set - PLRA5100010A: R.F.O Oversize Plug For dimensions, please refer to the Part Numbers & Specifications tab. Characteristics / Technical Specifications - Product Type: Plug - Plug Diameter: 0.500 inches - Max. Sealable Passageway Diameter: 0.500 inches - Proof Pressure: 3500 psi (Class 3), 2500 psi (Class 2) - Plug Material: 2024-T4 or T351 Aluminum - Housing Material: Aluminum - Pin Material: 2024-T4 or T351 Aluminum - Pin Finish: Alodine Yellow per MIL-DTL-5541 - Plug Finish: Anodize Green per MIL-A-8625 Type II B - Part Number: PLRA5000010A - Weight: 4.6 g - Installation: Hydraulic installation tool required - Size Range: 0.156 to 0.875 inches
