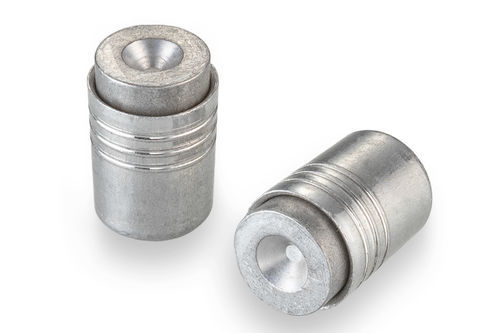

Tapered plug PLBA0602610S

threadedmetalstainless steel

This pre-assembled aluminum tapered expansion plug is engineered to seal fluid passages in metal castings, creating a leak-tight seal without the use of threads, O-rings, or sealants. Its unique tapered design eliminates the need for tight manufacturing tolerances and allows designers to minimize the wall thickness around the plug, even for brittle housing materials. The pre-assembled plug facilitates a reliable automated or manual installation process. It is ideal for high volume applications. - Plug Diameter: 6.10 mm - Max. Sealable Passageway Diameter: 5.50 mm - Rated Pressure: 35 bar - Plug Material: Aluminum - Housing Material: Aluminum, Cast Iron, Stainless Steel, or Steel General Performance - Rated Pressure*: 35 bar - Maximum Sealable Passageway Diameter: 5.50 mm - Maximum Temperature Rating: 135°C - Typical Installation Force in Aluminum: 4.9 kN - Acceptable Housing Materials: Aluminum, Cast Iron, Stainless Steel, and Steel *Pressure rating may be higher depending on specific application requirements. Materials - Pin: 6061 Aluminum - Plug: 6061 Aluminum Part Numbers & Specifications - Part Number: PLBA0602610S - Weight: 0.50 g - Installation Hole Drawing Number: 1INST089427S - Dimensional View: 2D and installation hole drawings available (see images). - Installation & Manufacturing Tools: Installation Tool Drawing Number: PLBT0670031S; Tapered Reamer Drawing Number: PLBT0670020S; Tapered Reamer, Rough Finish, Drawing Number: PLBT0600014S - CAD Envelope: 6 mm Short Betaplug Model available. - Technical Data Sheet and Handbook available (see documents). Key Technical Specifications: - Plug Diameter: 6.10 mm - Max. Sealable Passageway Diameter: 5.50 mm - Rated Pressure: 35 bar - Maximum Temperature Rating: 135°C - Typical Installation Force in Aluminum: 4.9 kN - Plug Material: 6061 Aluminum - Acceptable Housing Materials: Aluminum, Cast Iron, Stainless Steel, Steel - Part Number: PLBA0602610S - Weight: 0.50 g - Installation Hole Drawing Number: 1INST089427S
