Round plug PLGM series

threadednon-threadedstainless steel

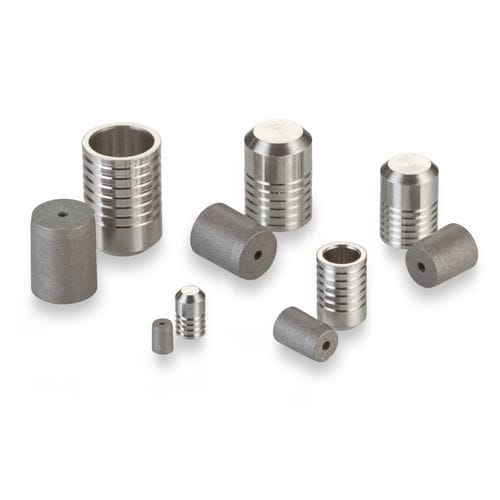

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 2.5 to 8 mm. - Plug Diameter: 4.50 mm - Max. Sealable Passageway Diameter: 3.7 mm - Proof Pressure: 196 MPa - Plug Material: Stainless Steel - Housing Material: Inconel, Monel, MP35N, Stainless Steel, or Titanium General Performance - Class 1: Short 83, Long 123 - Class 2: Short 98, Long 167 - Class 3: Short 113, Long 196 Materials - Pin: 416 CRES, QQ-S-763C, Rc 20-34, Passivated & Wax - Plug: 416 CRES, QQ-S-763C, Rc 20-34, Passivated Part Numbers & Specifications - PLGM0450020A: Short, D Max. 4.5, D Min. 4.48, C Nom. 4.55, M Nom. 3.81, K Nom. 3.64, L Nom. 3.29, Weight 0.51 g, A Min. 4.3, N Dia. Ref. 3.7, W Min. 1.6, Ream Dia. Class 1 H10 * 4.50 - 4.56, Class 2 H9 * 4.50 - 4.54, Class 3 H7 * 4.50 - 4.51 - PLGM0451020A: Long, D Max. 4.5, D Min. 4.48, C Nom. 7.19, M Nom. 6.61, K Nom. 3.62, L Nom. 5.15, Weight 0.84 g, A Min. 7.1, N Dia. Ref. 3.7, W Min. 1.6, Ream Dia. Class 1 H10 * 4.50 - 4.56, Class 2 H9 * 4.50 - 4.54, Class 3 H7 * 4.50 - 4.51 Replacement Parts & Accessories - CUTA1560203A: Installation Tool Set - CUTM0450103B: Extraction Tool Set - CUTM0451103A: Gauge - For dimensions, please refer to the Part Numbers & Specifications tab. - CAD Envelopes: 4,50 Stainless Steel Metric Lee Plug Short Model, 4,50 Stainless Steel Metric Lee Plug Long Model - Handbook: Technical Hydraulic Handbook of Aerospace, Energy, and Motorsport Solutions (Page A45) - Product Video: Lee Plug Expansion Plug Features & Benefits Overview - Article: Dual Sealing A.F.O.® Plugs Provide Pre-Charge and Purge Functions Key Technical Specifications - Plug Diameter: 4.50 mm - Max. Sealable Passageway Diameter: 3.7 mm - Proof Pressure: 196 MPa - Plug Material: Stainless Steel (416 CRES) - Housing Material: Inconel, Monel, MP35N, Stainless Steel, or Titanium - Available Sizes: 2.5 to 8 mm - Short and Long versions available
