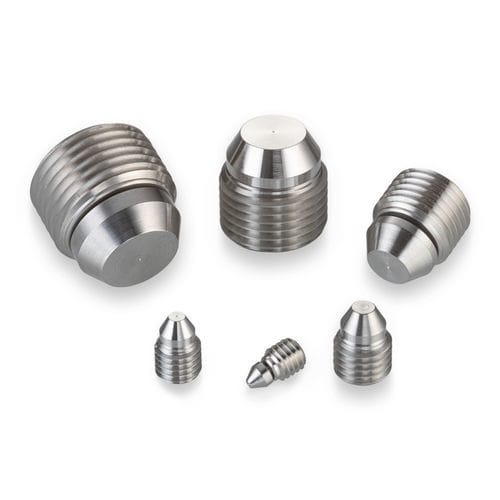

Cylindrical plug PLAA2528010A

threadedstainless steelaluminum

This thread-retained plug is designed to apply axial force only on the installation hole, making it ideal for sealing holes with thin walls. It uses a metal-to-metal seal for high pressure applications and is both removable and reusable, providing easy access to sealed passageways. A.F.O. plugs feature a unique floating seal that self-aligns to allow for threaded holes that are not perfectly concentric with the through hole. Sizes range from 0.19 to 0.75 inches. - Plug Diameter: 0.250 inches - Max. Sealable Passageway Diameter: 0.156 inches - Proof Pressure: 56,000 psi - Plug Material: Stainless Steel - Housing Material: Aluminum, or Stainless Steel General Performance - Proof Pressure (psi x 1000): Stainless Steel: 56, Aluminum: 26, AISI 8630: 56 Materials - Threaded Body: 303 CRES, Specification: QQ-S-763C and AMS 5640 Type I, Finish: Passivate - Nose: 15-5 PH CRES, Specification: AMS 5659, Finish: Passivate Dimensional Views & Installation Hole Details For dimensions, please refer to the Part Numbers & Specifications tab. Part Numbers & Specifications - Part Number: PLAA2528010A - A Min.: 0.098 - A Max.: 0.156 - D Nom.: 0.102 - E* Min.: 0.364 - F Min.: 0.07 - Weight: 1.3 g - B Thread: 0.25 - 28 - C Ref.: 0.365 - G Hex: 0.125 *Dimension (E) will vary with changes to dimension (A). All dimensions are in inches. This information is for reference only. Replacement Parts & Accessories - Coining Tool Part Number: CUTA2500163A - Required Tool Rotation: 175° +/- 35° - (Ref) Coining Torque (Aluminum Housing): 30 in-lbs - Installation Torque (Aluminum Housing): 25 in-lbs - (Ref) Coining Torque (Steel/AISI 8630 Housing): 71 in-lbs - Installation Torque (Steel/AISI 8630 Housing): 55 in-lbs - Sizes available: 0.19 to 0.75 inches - Removable and reusable - Metal-to-metal seal for high pressure - Floating seal for self-alignment Characteristics / Technical Specifications - Plug Diameter: 0.250 inches - Max. Sealable Passageway Diameter: 0.156 inches - Proof Pressure: 56,000 psi (Stainless Steel), 26,000 psi (Aluminum), 56,000 psi (AISI 8630) - Plug Material: Stainless Steel (303 CRES, 15-5 PH CRES) - Housing Material: Aluminum or Stainless Steel - Thread: 0.25 - 28 - Weight: 1.3 g - Installation Torque (Aluminum): 25 in-lbs - Installation Torque (Steel/AISI 8630): 55 in-lbs - Coining Tool Part Number: CUTA2500163A
