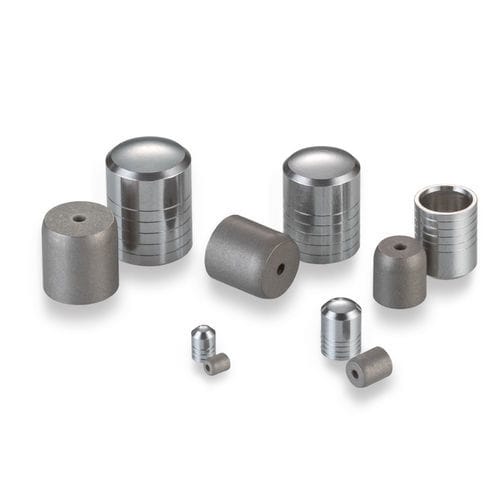

Cylindrical plug PLHA2181241A

threadedstainless steelcomposite

This member of our classic Lee Plug family is designed to seal passageways in high strength, high hardness materials such as titanium and inconel. Its construction from high strength material and unique geometry, coupled with the proven reliability of our Lee Plug expansion principal are what gives this plug a proof pressure rating of 32,000 psi (221 MPa). Sizes range from 0.093 to 0.343 inches. - Plug Diameter: 0.218 inches - Max. Sealable Passageway Diameter: 0.187 inches - Proof Pressure: 32,000 psi - Plug Material: 15-5PH - Housing Material: Inconel, Stainless Steel, or Titanium General Performance - 32,000 psi Proof Pressure Materials - Pin: 15-5 PH CRES, AMS 5659, Passivated & Wax - Plug: 15-5 PH CRES, AMS 5659, Passivated/Chromium Composite Part Numbers & Specifications - Part Number: PLHA2181241A - D Max.: 0.2187 - D Min.: 0.2178 - C Nom.: 0.29 - M Nom.: 0.248 - K Nom.: 0.182 - L Nom.: 0.194 - Weight: 1.2 g - A Min.: 0.268 - N Dia. Ref.: 0.187 - W Min.: 0.06 - Ream Dia.: 0.2187 - 0.2197 Replacement Parts & Accessories - CUTA2180203A: Installation Tool Set - CUTA2180103B: Extraction Tool Set - CUTA2181103A: Gauge - PLHA2281241A: Oversize Lee Plug Image Specifications - Dimensional View and Installation Hole Details available as images (see secondary images). Characteristics / Technical Specifications - Product: 218 15-5PH High Strength Lee Plug® - Plug Diameter: 0.218 inches - Max. Sealable Passageway Diameter: 0.187 inches - Proof Pressure: 32,000 psi (221 MPa) - Plug Material: 15-5PH CRES - Housing Material: Inconel, Stainless Steel, or Titanium - Part Number: PLHA2181241A - Weight: 1.2 g - Dimensions: D Max. 0.2187 in, D Min. 0.2178 in, C Nom. 0.29 in, M Nom. 0.248 in, K Nom. 0.182 in, L Nom. 0.194 in, A Min. 0.268 in, N Dia. Ref. 0.187 in, W Min. 0.06 in, Ream Dia. 0.2187 - 0.2197 in - Material Specifications: AMS 5659 - Finish: Passivated & Wax (Pin), Passivated/Chromium Composite (Plug) - Sizes available: 0.093 to 0.343 inches
