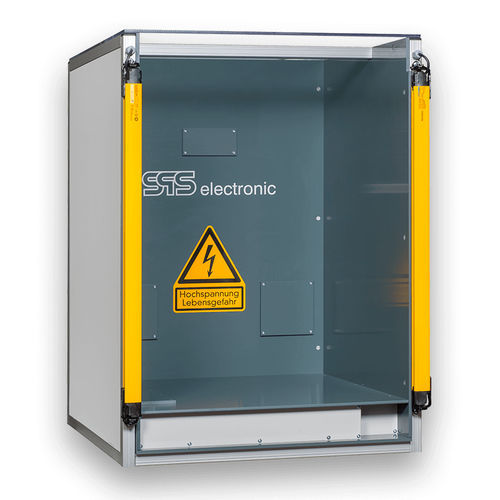

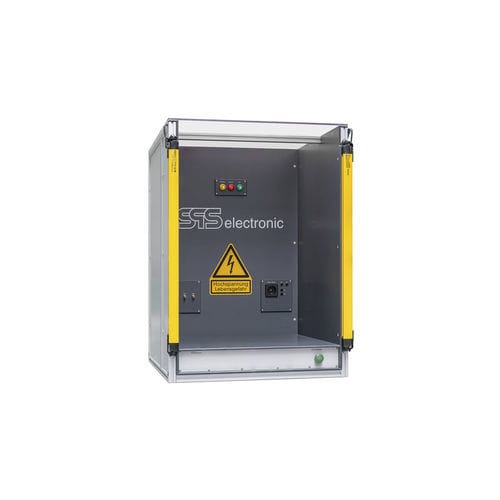

Desktop enclosure PK 2000ArectangularPVCaluminum profile
Add to favorites
Compare this product
Characteristics
- Construction
- desktop
- Configuration
- rectangular
- Material
- PVC, aluminum profile
- Application
- for tests
- Protection level
- insulated
- Width
720 mm
(28.3 in)- Height
1,008 mm
(39.7 in)- Depth
850 mm
(33.46 in)
Description
DUT enclosures are particularly suitable for test station equipment where protection against accidental contact in accordance with EN 50191 is required. The light curtain allows the DUT to be protected during the generation of dangerous voltages. As soon as the light curtain is interrupted, a forced shutdown occurs. Due to their simple and convenient handling, DUT enclosures with light curtains are particularly suitable for testing medium and large quantities.
Structure made of aluminum profile 30 x 30 mm
Pertinax cladding (color: RAL 7035)
Safety light curtain with finger protection, 14 mm
Test chamber dimensions: 640 x 790 x 660 mm (WxHxD)
CE-compliant design in accordance with EN 50191
