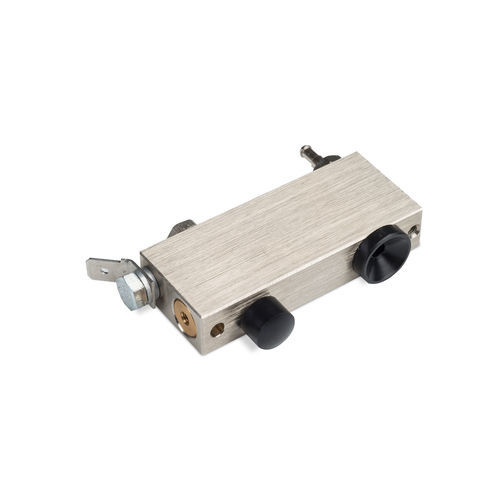

1-way manifold LK 25-4

plasticpneumatic

Description
Pneumatic line terminals enable rapid connection of free stripped cable ends in production and automated testing. Electrical contact is established by inserting the stripped conductor into the contact opening. A confirmation plunger is depressed by the inserted cable by approx. 1 mm, triggering the clamping piston which secures the cable to the housing. Pressing the opening button interrupts the air supply and releases the contact.

Function and operation
The pneumatic clamping piston holds the cable end in the contact cavity. The insertion of the cable actuates the confirmation plunger (~1 mm), which initiates the piston movement. The connection is released by a push-button that vents the piston by interrupting the compressed air supply.

Applications and integration
Multiple terminals can be embedded in a plastic block for compact arrangement and high insulation between channels. Four-wire routing can be brought up to the pneumatic terminal. A common valve for a group of terminals allows simultaneous release of all connections with a single signal. SPS electronic provides application-specific solutions for electrical contacting in test and production environments.

Key features

• Pneumatic line terminal for free cable ends
• Compressed-air operated with push-button release
• Contact actuation via confirmation plunger (~1 mm)
• Available for max. cable diameters 4 mm, 6 mm or 9 mm
• Electrical connection via Faston plug

Notes
For contacting smooth surfaces such as wire end ferrules, versions with a waffle crown (WK option) are recommended. WK versions are marked with the "WK" option.

Technical specifications

• Model family: LK 25 series
• Example variant on this page: LK 25-4
• Clamping diameters: 4 mm / 6 mm / 9 mm
• Operation: compressed air (pneumatic)
• Contact actuation: confirmation plunger pressed ~1 mm by cable
• Contact mechanism: clamping piston
• Release method: push-button vents pneumatic supply to release contact
• Electrical interface: Faston plug
• Mounting: terminals can be embedded in plastic blocks for close arrangement and high insulation
• Grouping: common valve possible for simultaneous release
• Optional accessory: WK 25 waffle crown for smooth terminations (e.g. ferrules)
• Typical applications: automated testing, quick production connections of free cable ends
