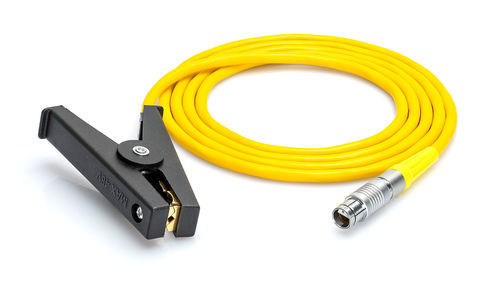

Kelvin clamp KL 90-I

Description
Special solutions for efficient work at the test station: a Kelvin clamp designed for reliable DUT connection with integrated high-current interface.

Features

• Kelvin clamp for direct connection to the DUT
• Max. operating voltage (DC): 1.500 VDC
• Test voltage (connection / start switch): 1.500 VDC
• Test voltage (contour / connection): 1.500 VDC
• Equipped with high-current plug ST 04-i
• Standard connection cable length: 2 m

Options / Configuration

• Model variants: KL 90-I (standard), KL 90-L, KL 90-F
• Cable length options: 2 m (standard); 5 m (KL 05) — +€60; 10 m (KL 10) — +€108; 15 m (KL 15) — +€156
• Optional warranty extension: to 24 months (surcharge: 4%)

Technical specifications

• Brand: SPSelectronic
• Model / commercial designation: KL 90-I
• Product number / SKU: KL 90-I
• Max. operating voltage (DC): 1.500 VDC
• Test voltage (connection / start switch): 1.500 VDC
• Test voltage (contour / connection): 1.500 VDC
• High-current plug type: ST 04-i
• Standard connection cable length: 2 m
• Available cable lengths and surcharges: 5 m (+€60), 10 m (+€108), 15 m (+€156)
• Optional warranty extension: to 24 months (4% surcharge)
• Net price (product page): €231.00
• Release date (metadata): 2026-08-06
