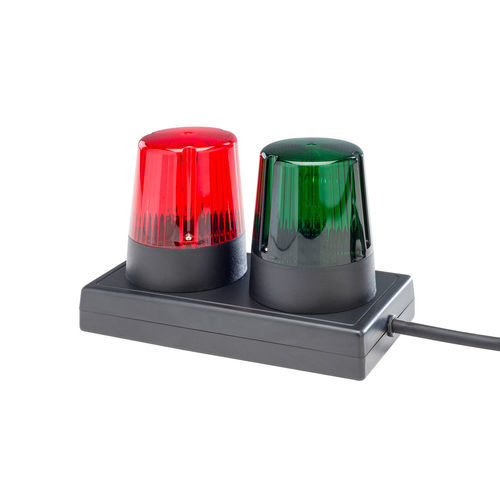

Panel-mount indicator light WL 25

rounddual-color

Product description
Warning light set WL 25 provides visual status indication for high-voltage test panels in accordance with EN 50191. Red and green lamps indicate the generation state of high voltage: red signals that high voltage can be generated (not necessarily present), green confirms no high voltage is present. The device is intended to protect test personnel and must not be used as a pass/fail test indicator.

Key features

• Visual status display for high-voltage test equipment
• Red and green indicator lamps for clear state signalling
• Compact enclosure suitable for test panels and control cabinets

Compatibility

• HA 3600D
• HA 1880B
• HA 1885B
• HA 1885J
• HA 1885G
• KT 1880B
• KT 1886B
• KT 1886J

Technical specifications

• Brand: SPSelectronic
• Commercial name / model: WL 25
• SKU / reference: WL 25
• Function: status indicator / warning lamp for high-voltage test panels (red = HV can be generated; green = no HV present)
• Standard: EN 50191 (warning lights for high voltages at workplaces ≥ 1,000 V)
• Dimensions: height 120 mm, width 85 mm, depth 170 mm
• Release date: 2026-08-06
• Price (net): 292 EUR
• Display type: red and green indicator lamps
