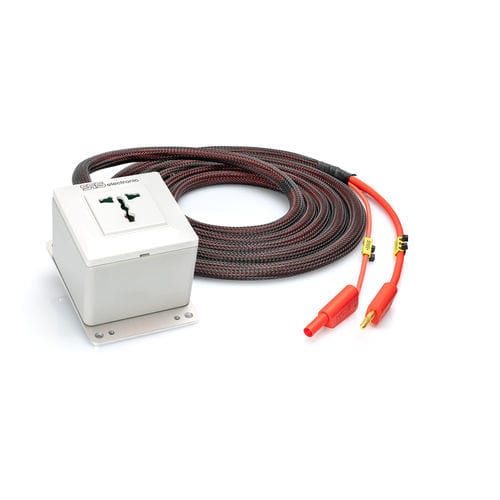

Wall-mounted junction box A3/6600-p

PVCwith electrical socketuniversal

Overview The A3/6600-p connection box is designed for international test applications. Intended for devices with protective earth connection (protection class I), it provides connection safety and versatile interfacing for electrical testing setups.

Construction and integration The housing is made of PVC and protects internal components during regular use. Compact dimensions and the supplied mounting plate allow straightforward installation in various test environments.

Features

• For DUTs with protective earth connection (protection class I)
• Mains connection of the DUT via universal socket outlet PP 66
• PVC housing
• Dimensions 81 x 58 x 82 mm (WxHxD)
• Mounting plate 81 x 113 mm (WxD)
• 4 mm banana plug / high-voltage plug ST 14
• Connection cable 1.5 m
• Universal socket PP 66 compatible with: Switzerland, Great Britain, Italy, Brazil, China, Australia, England, USA

Advantages Equipped with 4 mm laboratory plugs and a high-voltage connector ST 14, the box supports standard test connections. The 1.5 m cable provides flexibility for bench setup and handling. The integrated PP 66 universal socket enables compatibility with multiple national mains standards for international use.

Technical specifications

• Model: A3/6600-p
• Brand: SPSelectronic
• Protection class: I (for DUTs with protective earth connection)
• Universal socket: PP 66 (compatible with Switzerland; Great Britain; Italy; Brazil; China; Australia; England; USA)
• Housing: PVC
• Overall dimensions: 81 x 58 x 82 mm (W x H x D)
• Mounting plate dimensions: 81 x 113 mm (W x D)
• Connectors: 4 mm banana plugs and high-voltage plug ST 14
• Connection cable length: 1.5 m
